4.4A 260rpm Dual Shaft Gear Motor High Torque For PTZ Camera
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
| Minimum Order Quantity : | 100 | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | 500pcs per carton or as request | Delivery Time : | 15-20 working days |
| Payment Terms : | T/T, D/A | Supply Ability : | 100000pcs per month |
| Place of Origin: | Shenzhen | Brand Name: | SECORE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | SC300-4124 |
|
Detail Information |
|||
| No-load Speed: | 27RPM Or Customized | Rated Voltage: | 6V |
|---|---|---|---|
| Rated Torque: | 2KG.CM | Spur Gear Head Size: | 41*24mm |
| Motor Dimension: | 10.5*24mm | Motor Type: | Brush Spur Gear Motor |
| Product Nam20rpm Gear Motor, 60rpm Bldc Worm Gear Motore: | Valve Gear Motor, Spur Gear Motor For Valve | Typical Application: | Gas Valve, Vending Machine, Water Meter |
| Highlight: | Gas Valve DC Worm Gear Motor,27RPM DC Worm Gear Motor,6V Tiny Metal Gear Motor |
||
Product Description

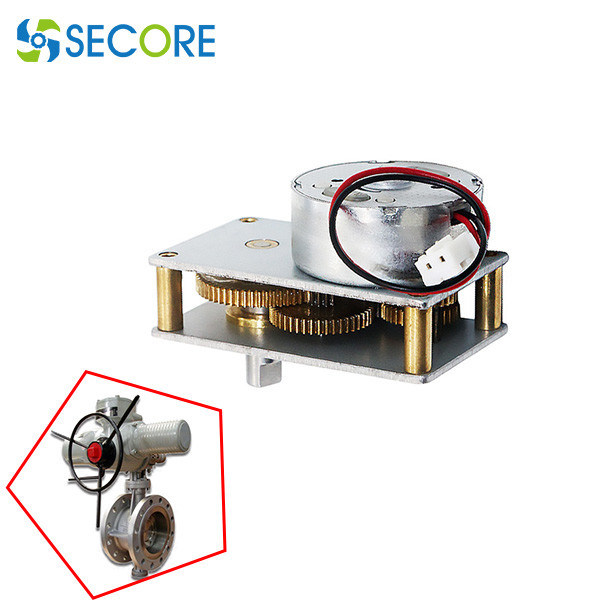

Micro Dc Valve Gear Motor, 6V Tiny Metal Gear Motor For Gas Valve
Secore Motor provides customized service, below technical parameters cases for reference:
| VOLTAGE RANGE |
NOMINATED VOLTAGE | GEAR RATIO | no-load Speed | no-load current | rated current | rated Speed | rated torque | output power | stall current | stall Torque |
| RPM | mA | mA | RPM | kg.cm | W | A | kg.cm | |||
| 3-12 | 6v | 1:100 | 27 | 160 | 280 | 21 | 2 | 1.1 | 1 | 9 |
Motor mounting sizes and shafts options:
It adopts high quality material, anti-rusty, not easy to corrode. Durable, strong stability with high torque, full power. Its good thermal conductivity, strong hardness and friction resistance, makes its life longer.
High stability, carbon steel, screw connection, high reliability, resistance to long-distance transportation vibration.
Que: To customize the motor, what information should be provided?
Ans: You need to offer the specification of the motor like expected sizes, rated voltage, speed, torque, shafts. It'll be great if the drawing is available.
Que: What’s your main motors?
Ans: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.
o Brushed Motor
o Brushless Motor (BLDC motor)
Coreless brush & Coreless Brushless
o Planetary Gear Motors
o Spur Gear Motors
o Worm Gear Motor
Que: What’s the main application of the micro dc motor?
Ans: Our DC motors are widely applied in precision instrument,financial equipment, medical devices, audio and visual equipment, industrial automation and secure, banking and vending system, home and office automation, automatic door system, medical device, personal care, power tool, smart household appliances, kitchen appliances, auto parts, RC Drone, industry apparatus, consumer electronics, kids toys,electric water valves, robots, Fascia Massague Gun etc.
