Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain

Name: Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain
Brand: SECORE
SKU: SC3157-5840WG
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (162 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	ISO9001	Model Number:	SC3157-5840WG

Detail Information
No-load Speed:	260rpm	Loaded Speed:	200rpm
Rated Voltage:	24V	Continuous Current:	1.6A
No-load Current:	0.2A	Commutation:	Brush
Rated Torque:	6.2kg.cm	Loaded Current:	1.6A
Stall Torque:	18kg.cm	Stall Current:	4.4A
Product Type:	Worm Gear Motor, Dc Brush Reducer Motor	Typical Application:	Motorized Curtain, Electric Curtain
High Light:	Dc Turbine Worm Gear Motor , Motorized Curtain Worm Gear Motor , 260rpm Permanent Magnet Gear Motor

Product Description

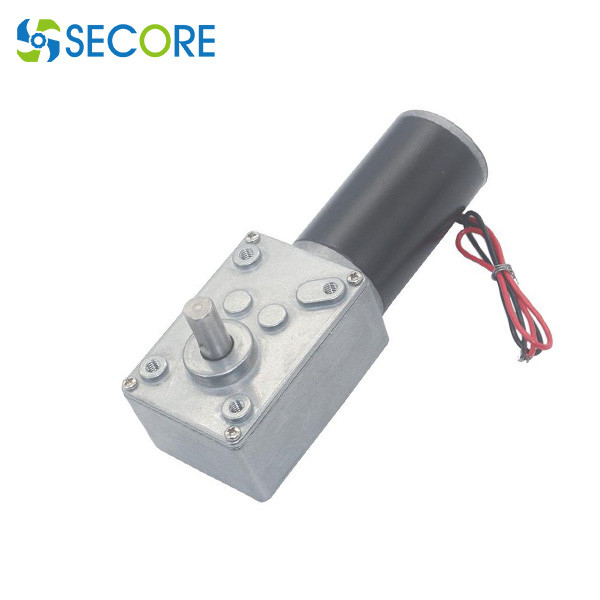

24V Permanent Magnet Dc Turbine Worm Gear Motor For Motorized Curtain

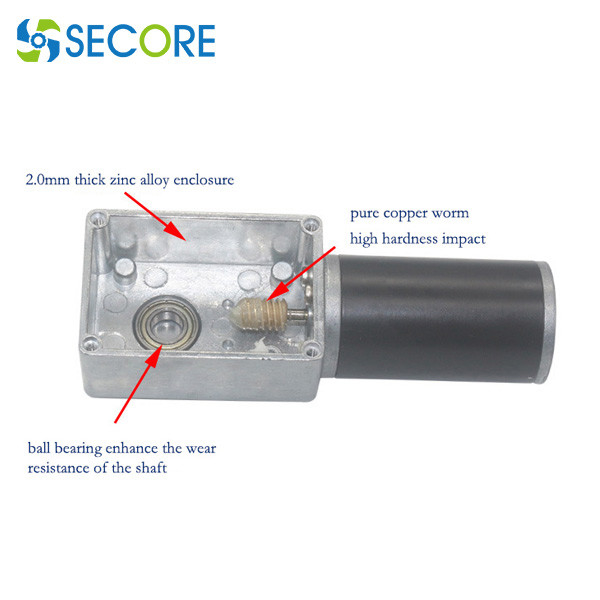

Main features:

Motor type: Brush commutated DC worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm

DC 24.0V Worm gear motor
Reducer	Ratio	1:i	1:17	1:31	1:50	1:100	1:200	1:290	1:505	1:670
Reducer	Size L	mm	*L58W40H27*
No Load	Speed	rpm	470	260	160	80	40	27	16	12
No Load	Current	A	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
Rated load	Speed	rpm	380	200	130	60	30	20	12	9
	Torque	Kgf.cm	3.4	6.2	10	20	40	60	70	70
	Current	A	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6
Stall	Torque	Kgf.cm	10	18	30	60	70	70	70	70
Stall	Current	A	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4

Gear motor dimensions:

Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain 0

Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain 1
