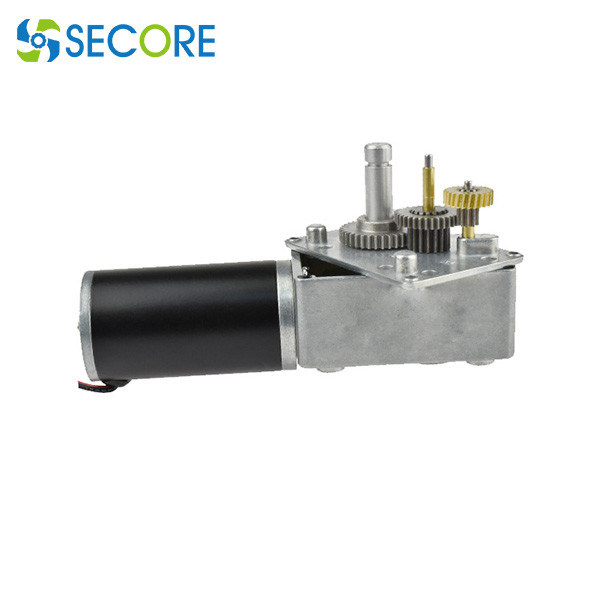

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	ISO9001	Model Number:	SC3157-5840WG

Detail Information
No-load Speed:	5rpm	Loaded Speed:	4rpm
Rated Voltage:	24V	No-load Current:	0.1A
Commutation:	Brush	Rated Torque:	70kg.cm / 7N.m
Loaded Current:	1.6A	Rated Power:	2.93W
Stall Torque:	70kg.cm	Stall Current:	1.4A
Product Type:	5RPM Gear Motor, Dc High Torque Reducer Motor	Typical Application:	Motorized Curtain, Electric Curtain, Smart Robot
High Light:	7NM Adjustable Gear Motor , 12V Reversible Adjustable Gear Motor , High Torque Bldc Planetary Gear Motor

Product Description

12V High Torque Speed Adjustable Reversible Gear Motor, 7N.M Self Lock Worm Geared Motor

Main features:

Motor type: 24V high torque worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm

Voltage	Rated	V	24V
Reducer	Ratio	i:1	17	31	50	100	200	290	505	670
Reducer	Size L	mm	*L58W40H27*
No Load	Speed	rpm	200	110	70	35	17	12	7	5
No Load	Current	A	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1
Rated load	Speed	rpm	150	80	50	27	13	9	5	4
	Torque	Kgf.cm	2.7	5	8	16	32	46	70	70
	Current	A	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
	Output	W	4.24	4.19	4.19	4.52	4.36	4.34	3.66	2.93
Stall	Torque	Kgf.cm	4.4	8	13	25	51	70	70	70
Stall	Current	A	1.4	1.4	1.4	1.4	1.4	1.4	1.4	1.4
Weight	g		365

Gear motor dimensions:

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock 0

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock 1

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock 2

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock 3

7NM 12V Reversible Adjustable Gear Motor High Torque Self Lock 4
