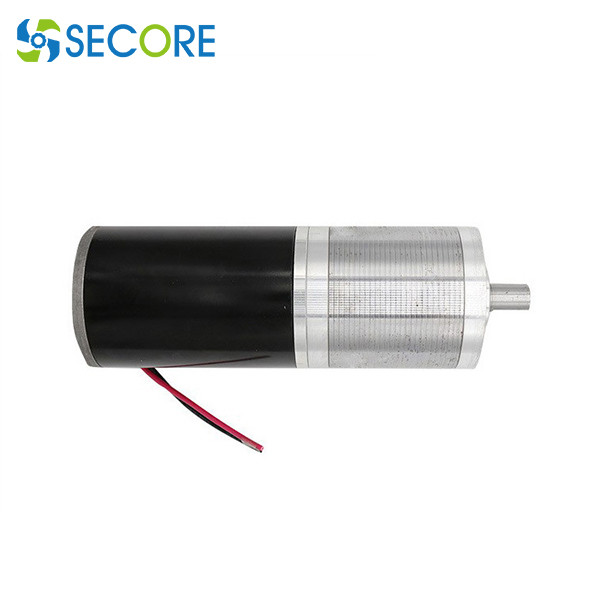

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor 45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor 45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor 45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor
Contact Now

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 80pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: CL4567-775

Detail Information
Rated Voltage: 24V Free Load Speed: 40rpm
With Load Speed: 34rpm Rated Power: 20W
Rated Torque: 56kg.cm / 781oz.in Gear Ratio: 1:187.5
Rated Current: 1.67A Max Motor Size: 45*67mm
Product Name: High Quality Brush Ironless Planetary Gear Motor Application: Automobile Part, Power Tool, Medical Device
High Light:

Robotics Coreless Gear Motor

,

Coreless Gear Motor 50kg

,

High Torque Planetary Gear Reducer Motor

Product Description

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor


Secore Planetary ironless Gear Motor parameter:


Model VOLTAGE NO LOAD WITH LOAD gear ratio

1:___		 Length L
SPEED
RPM		 CURRENT
max A		 SPEED
RPM		 TORQUE
kg.cm mN.m oz.in		 CURRENT
max A		 Output
W
CL4567-775 24 2160 0.35 1730 1.78 174.44 24.72 1.67 32 3.7 100.1
CL4567-775 24 1530 0.22 1280 2.4 235.2 33.330 1.67 32 5 100.1
CL4567-775 24 580 0.35 467 5.75 563.5 79.853 1.67 28 13.7 108.2
CL4567-775 24 410 0.22 346 7.77 761.46 107.906 1.67 28 18.5 108.2
CL4567-775 24 290 0.22 256 10.5 1029 145.819 1.67 28 25 108.2
CL4567-775 24 150 0.35 127 18.18 1781.64 252.475 1.67 24 50.5 116.3
CL4567-775 24 110 0.22 93 24.66 2416.68 342.466 1.67 24 68.5 116.3
CL4567-775 24 80 0.22 69 33.3 3263.4 462.454 1.67 24 92.5 116.3
CL4567-775 24 60 0.22 51 45 4410 624.938 1.67 24 125 116.3
CL4567-775 24 40 0.35 34 56.25 5512.5 781.172 1.67 20 187.5 127.4
CL4567-775 24 30 0.22 25 76.2 7467.6 1058.228 1.67 20 254 127.4
CL4567-775 24 23 0.22 19 102.6 10054.8 1424.858 1.67 20 342 127.4
CL4567-775 24 17 0.22 14 138.75 13597.5 1926.891 1.67 20 462.5 127.4
CL4567-775 24 12 0.22 10 187.5 18375 2603.906 1.67 20 625 127.4

Gear ring material steel
Bearing at output ball bearings
Radial paly of shaft <0.05mm
Thrust play of shaft <0.2mm
Backlash at no load <2.0
Gear material Steel/powder alloy
Output shaft θ4.0 θ6.0 θ8.0 custom made
New weight NA

Outline drawing

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor 0

Strict raw material application

45mm Robotics Coreless Gear Motor 50kg High Torque Steel Planetary Gear Reducer Motor 1
