Home ProductsCoreless DC MotorIronless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W

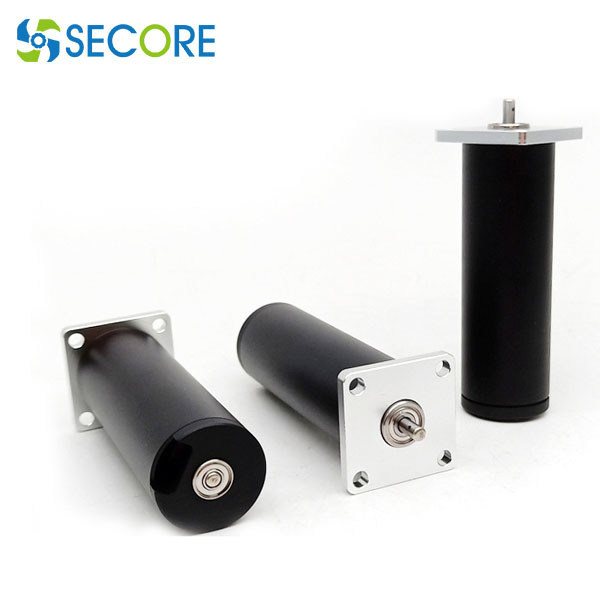

Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Contact Now

Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 20pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001 Model Number: BCL-2266

Detail Information
Rated Voltage: 24V Rated Power: 117W
Rated Torque: 872g.cm, 87mN.m Free Load Speed: 13262rpm
Rated Current: 6.25mA Motor Dimensions: 22*66mm
Product Name: 118W Ironless Bldc Motor, Slotless Brushless Motor Usage: Beauty Equipment, Power Tool, 5g Antenna, Robot Arm
High Light:

Ironless Coreless Bldc Motor

,

Cylindrical Winding Coreless Bldc Motor

,

117W High Torque Gear Motor

Product Description

22mm 24V Ironless Bldc Motor High Torque 87mN.M Power Tool Coreless Motor


Brushless slotless DC Motor parameter:


Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BCL-2266-12 12 11511 241 9776 622 6.6 62.8 2064 43
BCL-2266-24 24 15612 252 13262 872 6.25 117.5 2904 39

Motor Dimension

Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W 0
Coreless Motor Characteristics and advantages

Small dimension, compact and light construction
Low electromagnetic interference
Low inductance
Good servo feature
Smoothly speed adjustment
Low starting voltage
Rapid reaction
Low mass inertia
No magnet cogging
Cylindrical winding
No iron core, no iron losses, high efficiency upto 90%, long motor life

Tag:

high speed coreless motor

magnet coreless brush dc motor

coreless brush or brushless motor
