7570rpm 3.7V Coreless Brushed Motor 1625 Carbon Brush Motor
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
| Minimum Order Quantity : | 200 | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | 50pcs per carton or as request | Delivery Time : | 5-10 working days |
| Payment Terms : | T/T, D/A | Supply Ability : | 50000pcs per month |
| Place of Origin: | Shenzhen | Brand Name: | SECORE |
|---|---|---|---|
| Certification: | CE ISO9001 CCC VDE | Model Number: | SC-CL1331 |
|
Detail Information |
|||
| Rated Voltage: | 6V | Rated Power: | 3.75W |
|---|---|---|---|
| Rated Torque: | 2.4mN.m Or As Request | Rated Speed: | 8800rpm |
| Rated Current: | 0.5A Or As Request | Mounting Sizes: | 13*31mm ( Diameter * Length ) |
| Item Name: | 20g High Quality Motor, 13mm Motor For Top Brand Tool | Application: | Dental Tool, Tattoo Pen, Electric Tool, Kids Toy |
| Highlight: | Tattoo Pen Coreless DC Motor,3.75W Coreless DC Motor,8800rpm High End Dc Motor |
||
Product Description

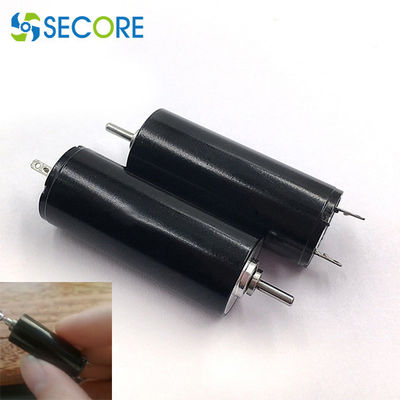

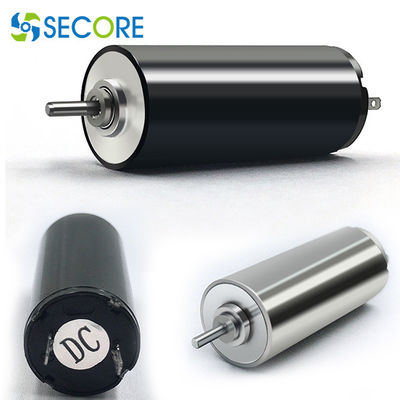

Small Size 13mm High-End Device Dc Motor, Light Weight 20g 6V 12V Coreless Motor
| Product type:Brush dc coreless motor, Brushless dc coreless motor |
| Diameter range: 10mm to 60mm |
| Working voltage range: 3V to 48V |
| Speed no-load: 2000 to100000R/M |
| Power: 2W to 800W |
| Production mode: This is a customized product, which is tailored to the needs of customers |
| Motor Selection: Provide original version or customized drawings. Welcome to contact sales staff to understand basic performance parameters and determine the specifications and models suitable for customers; |
| Product color: the regular color is black or silver, other color is customizable. |
Technical parameter:
| Motor data | Motor model no. | |||||
| Values at rated voltage | CL1331 | CL1331 | CL1331 | CL1331 | ||
| At Nomimal | Nominal voltage | V/DC | 3 | 6 | 12 | 24 |
| Nominal speed | RPM | 9600 | 8800 | 9280 | 12960 | |
| Nominal current | A | 0.9 | 0.5 | 0.2 | 0.4 | |
| Nominal Torque | mNm | 2.1 | 2.4 | 2 | 5.2 | |
| Free load | No load speed | RPM | 12000 | 11000 | 11600 | 16200 |
| No load current | mA | 45 | 30 | 18 | 12 | |
| At Max Efficiency | Max efficiency | % | 80.8 | 75.8 | 69.4 | 70.5 |
| Speed | RPM | 10920 | 9735 | 9918 | 13932 | |
| Current | A | 0.4 | 0.3 | 0.2 | 0.3 | |
| Torque | mNm | 0.9 | 1.4 | 1.5 | 3.7 | |
| At Max output power | Max output power | W | 3.2 | 3.5 | 3.1 | 11.1 |
| Speed | RPM | 6000 | 5500 | 5800 | 8100 | |
| Current | A | 2.2 | 1.2 | 0.6 | 1 | |
| Torque | mNm | 5.1 | 6 | 5 | 13.1 | |
| At Stall | current | A | 4.4 | 2.4 | 1.1 | 2 |
| torque | mNm | 10.3 | 12.1 | 10.1 | 26.2 | |
| Motor constants | Motor Constants | Ω | 0.68 | 2.5 | 11.11 | 12.31 |
| Terminal resistance | mH | 0.48 | 0.122 | 0.265 | 0.75 | |
| Torque constant | mNm/A | 2.36 | 5.12 | 9.6 | 13.78 | |
| Speed constant | rpm/V | 4000 | 1833 | 966 | 675 | |
| Speed/torque constant | rpm/mNm | 1166 | 910 | 1150 | 618 | |
| Mechanical time constant | ms | 8.1 | 6.3 | 7.9 | 4.3 | |
| Rotor inertia | g.cm² | 0.65 | 0.65 | 0.65 | 0.65 | |
| Number of pole pairs | 1 | |||||
| Number of phases | 5 | |||||
| weight of motor | g | 20 | ||||
| Typical noise level | dB | ≤45 | ||||
There are numerous applications in particularly demanding sectors such as aerospace, defence and surveillance. It enjoys below advantages.
1. The design eliminating the cogging effect
2. Low level of EMI ( electromagnetic interference ), This is particularly beneficially when there are EM signals within the application, such as smartphones or medical devices.
3. Little current consumption. Coreless motors can also be used in battery-powered devices, as they absorb little current thanks to their features.
4. high efficiency upto 90%, long motor life. It has no iron core, no iron losses.
