Home ProductsSpur Gear Motor12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm

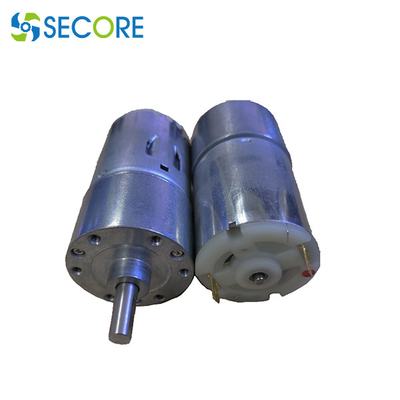

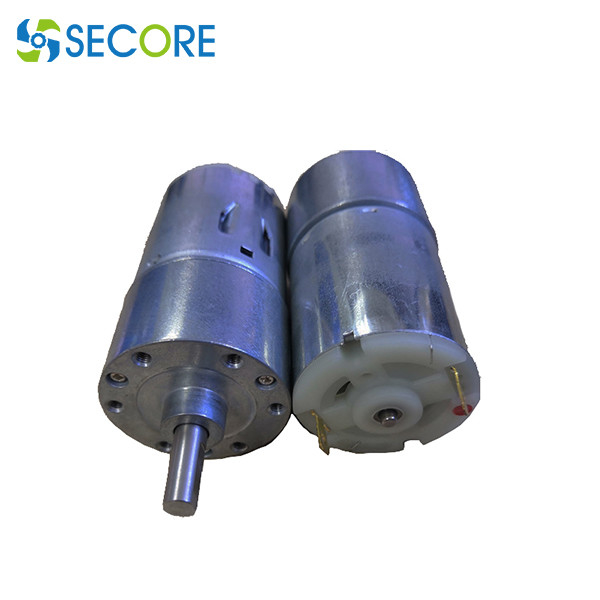

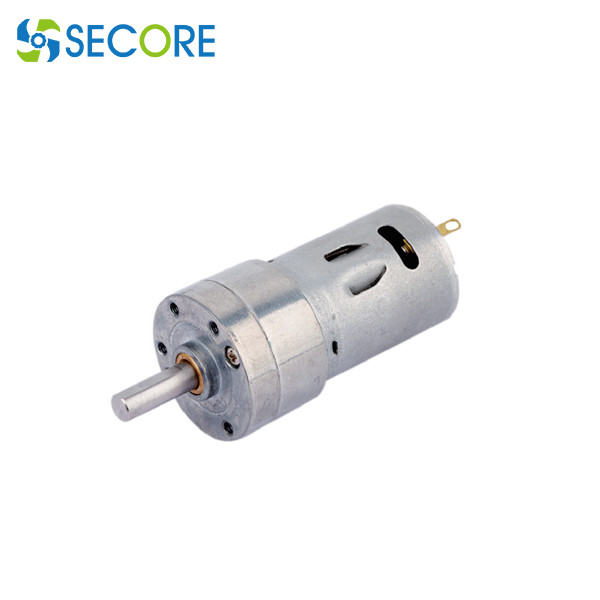

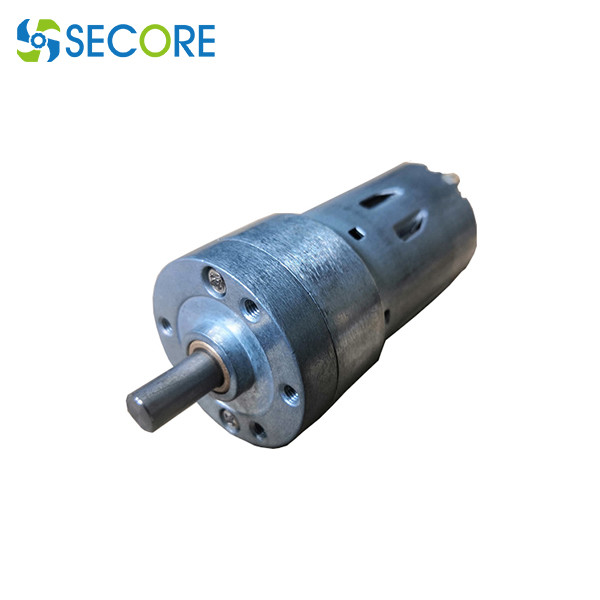

12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm 12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm 12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm
Contact Now

12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: DC2837-32GM

Detail Information
Model Number: DC2837-32GM Operating Voltage: 12V 24V
Gearbox Size: 32mm Diameter * 15-28.5mm Length Motor Size: 27.8mm * 37.5mm
Rated Load Speed: 55rpm Rated Torque: 5kgf.cm ( 0.5N.m )
Motor Type: Brush, Brushless Optional Application: Revolving Light, Rotating Light, Stage Light
High Light:

32mm metal gear motor

,

revolving light gear motor

,

reduction gear motor 50rpm

Product Description

12v 32mm Factory Dc Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm



Gearbox specification:



MODEL# Voltage
VDC		 NO LOAD AT LOAD STALL
SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT POWER
±10% r/min mA ±10% r/min mA gf.cm gf.cm A W
DC2837 12 13000 200 11260 1160 90 350 6.5 19.7
24 7800 90 6100 330 90 290 1.2 7.2

Motor parameters:

MODEL# DC2837-32GM Free load speed Rated speed Rated torque Stall torque
Voltage 12V R/Min R/Min kg.cm kg.cm
Gear ratio 5.8 ( 15mm ) 2200 1920 0.4 2.9
17 ( 17.7mm ) 750 650 1.0 7.8
52 ( 20.4mm ) 250 310 3.0 21.0
105 ( 23.1mm ) 120 105 5.0 38.0
278 ( 25.8mm ) 45 40 6.0 45.0
465 ( 25.8mm ) 28 24 8.0 60.0
732 ( 28.5mm ) 18 15 8.0 80.0
1397 ( 28.5mm ) 9 7.9 8.0 80.0

MODEL# DC2837-32GM Free load speed Rated speed Rated torque Stall torque
Voltage 24V R/Min R/Min kg.cm kg.cm
Gear ratio 5.8 ( 15mm ) 1300 1050 0.4 1.5
17 ( 17.7mm ) 450 350 1.0 4.2
52 ( 20.4mm ) 150 115 3.0 7.0
105 ( 23.1mm ) 70 55 5.0 21.0
278 ( 25.8mm ) 28 22 5.0 50.0
465 ( 25.8mm ) 17 13 8.0 60.0
732 ( 28.5mm ) 11 8 8.0 80.0
1397 ( 28.5mm ) 5.5 4.2 8.0 80.0



Mounting dimensions:



12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm 0

Application cases:



12v 32mm DC Metal Gear Motor, 24v Revolving Light Reduction Gear Motor 55rpm 1
