IP68 2430 Brushless Motor 1Hp Waterproof Electric Motor For Underwater Device
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
Minimum Order Quantity : | 50 | Price : | Negotiated The Price |
---|---|---|---|
Packaging Details : | 100pcs per carton or as request | Delivery Time : | 10-12 working days |
Payment Terms : | T/T | Supply Ability : | 20000PCS / month |
Place of Origin: | Shenzhen | Brand Name: | SECORE |
---|---|---|---|
Certification: | ISO9001 | Model Number: | E4245 |
Detail Information |
|||
Power Supply: | 12Volts - 24Volts | Power: | 100-400W |
---|---|---|---|
Propeller Size: | Recommend 60 To 80mm | Thrust: | 2kg 2.5kg 3kg Customizable |
Work Current: | 7A To 10A | Underwater Depth: | 50 Meters |
IP Protection: | IP68 | Application: | Swimming Scooter, Sea Scooter, Rov Thruster, Efoil, Surfing Board |
High Light: | 50m Underwater BLDC Motor,Waterproof Underwater BLDC Motor,Swimming Scooter Thrust Waterproof Motor |
Product Description
![]() |
Motor Model number: BLE4245 |
Item name: Waterproofing bldc motor | |
Motor type: outer rotor brushless motor | |
Working volts: 12V to 24V compatible | |
Continuous working current: 7 to10A | |
Protection level: IP68 | |
Thrust: 2KG-3KG | |
Advantage: waterproofing, water-resistant, anti-water, anti-sand, anti-crystallization ( Patent ) | |

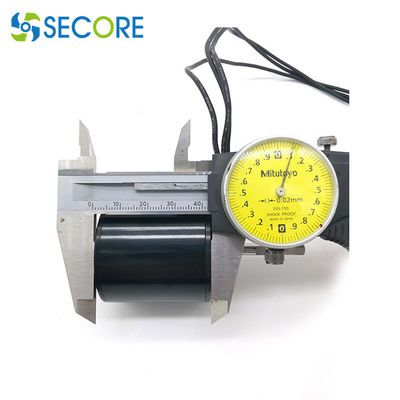

Dimension: 42mm*45mm |
Outline drawings:
Features:
Easy to use: Small size with high efficiency and large thrust, flexible and easy to control.
Good quality: Anti-sand, Anti-crystallization, double layer protection with patent waterproofing technology.
Wide application: Designed for water related device, such as ROV motor, survey equipment, Autonomous Survey Vessels, maneuvering subsea system , AUV propulsion, thrusters, underwater propulsion, seascooter, DPVs or Diver Propulsion Vehicles, underwater drone, Underwater ROV, portable underwater robot, submersible robotic systems etc.
Cutting-Edge technology: The potting waterproofing process is to seal the stator of the motor through a waterproof glue tank, but there is a gap between the stator and the rotor of the motor, water can enter, so it cannot prevent salt crystallization and sediment. The sealing process is that after the entire motor is waterproofed, it is sealed up, only the shaft is rotating, so that it can prevent salt crystallization and sediment.
