IP68 2430 Brushless Motor 1Hp Waterproof Electric Motor For Underwater Device
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
| Minimum Order Quantity : | 200 | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | 10pcs per carton or as request | Delivery Time : | 10-12 working days |
| Payment Terms : | T/T | Supply Ability : | 30000PCS / month |
| Place of Origin: | China | Brand Name: | SECORE |
|---|---|---|---|
| Certification: | CE RoHS | Model Number: | BLE-5062 |
|
Detail Information |
|||
| Voltage: | 12V, 24V, 36V | KV Value: | 160KV |
|---|---|---|---|
| Propeller Diameter: | 80-115mm | Thrust: | 5-8KG |
| Continuous Work Current: | 12-15A | Working Depth: | 50 Meters |
| Protection Rate: | IP68 | Application: | Electric Surfboard, Rov Thruster, Efoil, Surfing Board |
| Highlight: | IP68 underwater thruster brushless motor,160kv underwater thruster brushless motor,Efoil Underwater Brushless Motor |
||
Product Description

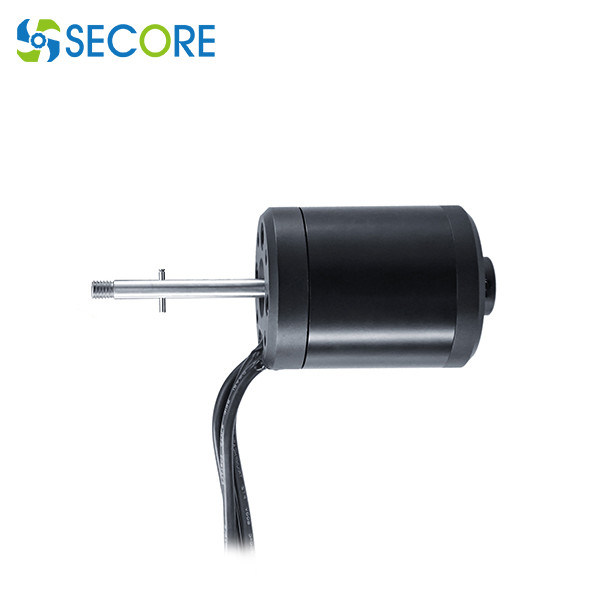

36V IP68 Brushless Motor 160kv 500W Efoil Motor Electric Hydrofoil Bldc Motor
Parameters:
| Motor Model number | BLE-5062 | Dimension | 50*62mm ( diameter * length ) |
| Motor name | brushless motor | Rotor | outrunner rotor |
| Motor type | Efoil motor, surfboard motor | Protection rate | IP68 |
| Voltage Range | 24v~36v | Rated Current | 12A |
| RPM | 3840-5760 | Maximum load current | 30A |
| KV(RPM/V) | 160KV | Rated Power | 600W |
| Thrust | 7KG | feature | anti-sand, Anti-Crystallization |
| Hole Distance | 35mm | Screw Holes | 4*M4 |
| Propeller diameter | 80-115mm | Existing prepeller | 95mm |
Mechanical dimensions:
IP68 waterproof motor features:
1. IP rating: IP68;
2. The shaft material is 316 stainless steel, which can work in the ocean for a long time;
3. The salt spray test lasts >140 hours with special bearings and lubrication;
4. The vacuum sealed coil adopts high thermal conductivity material, which can effectively protect copper wire and silicon steel sheet from seawater corrosion;
5. The motor wire is potted in the solder joint, which meets the 200-meter suppression test.
Typical application:
Provide Solutions For 50W 400W 600W 700W 800W 900W 1200W 1300W 2100W 10000W 5HP 6HP 7HP 8HP 9HP 10HP Waterproof Motors for Motorized surfboard, E-Jet board, surfing board, electric floating board, Efoil, Electric Surfboard, rov thruster and underwater devices.
