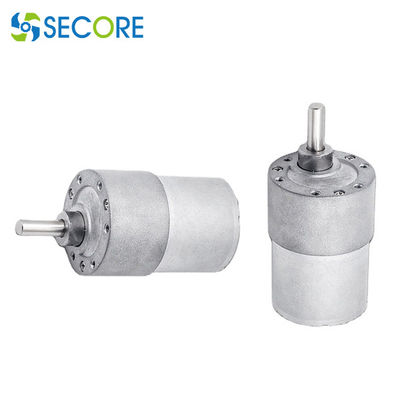

Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor

Name: Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor
Brand: SECORE
SKU: DC3530-37GB
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (193 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong	Brand Name:	SECORE
Certification:	RoHS	Model Number:	DC3530-37GB

Detail Information
Motor Size:	35mm 40mm ( Diameter Length )	Gear Ratio:	1:122
Rated Voltage:	24V	Speed Rated:	8.7rpm Or Customized
Free Load Speed:	10.8rpm Or As Request	Rated Torque:	18kg.cm /1.8N.m
Rated Current:	0.4A	Motor Type:	3540 Brush Motor 12V24V Door Gear Motor
Typical Application:	Automatic Door, Automatic Window, Electric Window	Shaft Diameter:	5.5mm Or Customize
High Light:	Automatic Door Brush Gear Motor , DC Brush Gear Motor , 10RPM Automatic Door Gear Motor

Product Description

Automatic Door Gear Motor And 12/24V Vending Machine 10RPM 20RPM DC Motor

Secore Brush gear motor 12v 24v 3640-37GB

Reduction stage	2	3	4	5	6	7
Reduction ratio	6K, 8K, 10K	20K, 30K	61K, 90K	104K, 122K, 184K, 270K	311K, 552K, 414K, 810K	1243K, 1656K, 2430K
gearbox length L	18	21.5	24	26.5	29	31.5
Gearbox efficiency	81%	73%	65%	59%	53%	48%

MODEL	VOLTAGE	NO LOAD		WITH LOAD				STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT max A	SPEED RPM	TORQUE Kg.cm	CURRENT max A	Output W	TORQUE min Kg.cm	CURRENT max A
DC3530-37GB	12	3000	0.024	2250	0.041	0.171	0.51	0.145	0.41
DC3530-37GB	12	4500	0.046	3600	0.045	0.212	1.72	0.208	1.07
DC3530-37GB	12	6000	0.055	4800	0.061	0.368	3.11	0.278	1.85
DC3530-37GB	24	3000	0.021	2400	0.046	0.052	1.12	0.201	0.22
DC3530-37GB	24	4500	0.032	3600	0.051	0.115	1.91	0.226	0.49
DC3530-37GB	24	6000	0.031	4800	0.077	0.211	3.81	0.343	0.85

Dimension of the spur gear motor:

Automatic Door Brush Gear Motor 12V 24V Vending Machine 10RPM 20RPM DC Motor 0

Spur Gear motors:

A spur gear motor is a cost effective solution, suited for low torque and low RPM applications such as electric door, automated paper towel dispenser. Brush commutated spur gear DC motor, it includes a supply voltage range between 2-36V and can be supplied with or without encoder depending on the type. Available gear types are worm, planetary or spur gears. For some types, carbon or metal brushes are also available. All motors can be customized upon request. Common customizations are shaft dimensions, cable connections. Submit your motor requirements today and let's help to make your application more efficient.
