12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable
12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable
Contact Now

12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-20 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: DC3657-37GB

Detail Information
Rated Speed: 20RPM Rated Voltage: 12V
Rated Torque: 4.8N.m Motor Sizes: 36*57mm (OD*L)
Gear Box Dimension: 20.2*37mm Motor Type: 555 Decelerating Motor
Product Nam20rpm Gear Motor, 60rpm Bldc Worm Gear Motore: 7rpm 10rpm 15rpm 20rpm Gear Motor, High Torque Reducer Motor Typical Application: Meat Machine, Electric Window, Automatic Control
High Light:

37mm Gearbox reducing motor

,

800rpm gear reduction motor

,

Speed Adjustable 555 Reducing Motor

Product Description

Hot Sale 12v24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable

Secore provides customization on speed, voltage, torque, shaft and so on

Main characteristics on DC3657-37GB gear motor:



MODEL VOLTAGE Motor free load motor with gearbox (no load )
Current Speed torque Motor size gear ratio gearbox length current speed
DC3657-37GB 12 0.3 8000 0.31 57 10 16.8 0.9 800
DC3657-37GB 12 0.3 8000 0.31 57 30 20.2 0.9 267
DC3657-37GB 12 0.3 8000 0.31 57 50 20.2 0.9 160
DC3657-37GB 12 0.3 8000 0.31 57 90 20.2 0.9 89
DC3657-37GB 12 0.3 8000 0.31 57 150 20.2 0.9 53
DC3657-37GB 12 0.3 8000 0.31 57 167 20.2 0.9 48
DC3657-37GB 12 0.3 8000 0.31 57 270 20.2 0.9 30
DC3657-37GB 12 0.3 8000 0.31 57 450 20.2 0.9 18
DC3657-37GB 12 0.3 8000 0.31 57 810 20.2 0.9 10
DC3657-37GB 12 0.3 8000 0.31 57 1350 20.2 0.9 6
DC3657-37GB 12 0.3 8000 0.31 57 2430 20.2 0.9 3



MODEL VOLTAGE max efficiency Noise At stall
current speed torque output power dB current moment of force
DC3657-37GB 12 3.6 560 1.8 43 65 18 5.4
DC3657-37GB 12 0.6 187 5.4 43 65 3 16.2
DC3657-37GB 12 1.2 112 9 43 65 6 27
DC3657-37GB 12 1.2 62 16.2 43 58 6 48.5
DC3657-37GB 12 1.2 37 27 43 58 6 80.9
DC3657-37GB 12 1.2 34 30 43 58 6 90.1
DC3657-37GB 12 1.2 21 48.5 43 55 6 145.6
DC3657-37GB 12 1.2 12 80.9 43 55 6 242.7
DC3657-37GB 12 1.2 7 105.5 43 55 6 284.7
DC3657-37GB 12 1.2 4 146.5 43 55 6 366.2
DC3657-37GB 12 1.2 2 226 43 55 6 452

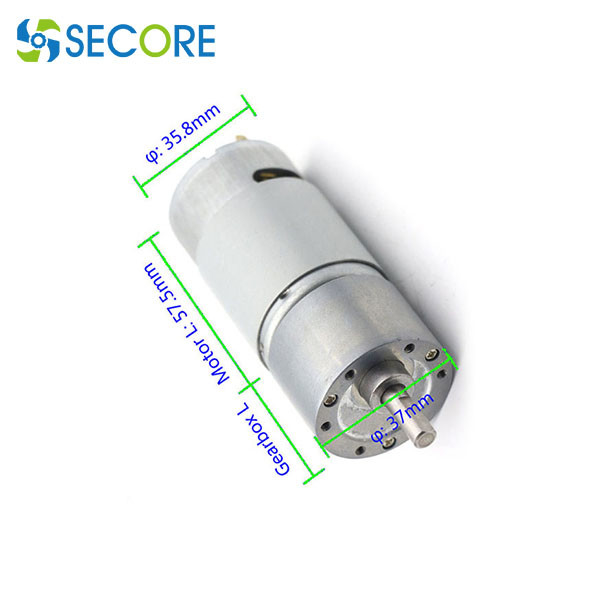

Motor mounting sizes and shafts options:



12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 0

12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 1

12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 2



Performance curve



12v 24v 800rpm 555 Reducing Motor With 37mm Gearbox Speed Adjustable 3



How to select the suitable gear motor?



1.Know your application requirements for your gear motor.

2. Select the proper motor.

3. Know the speed and torque requirements of the load to be driven.



Application cases



machinery equipment electric tools automatic control
financial equipment vending machine electric curtains
medical device advertising light box electric windows
