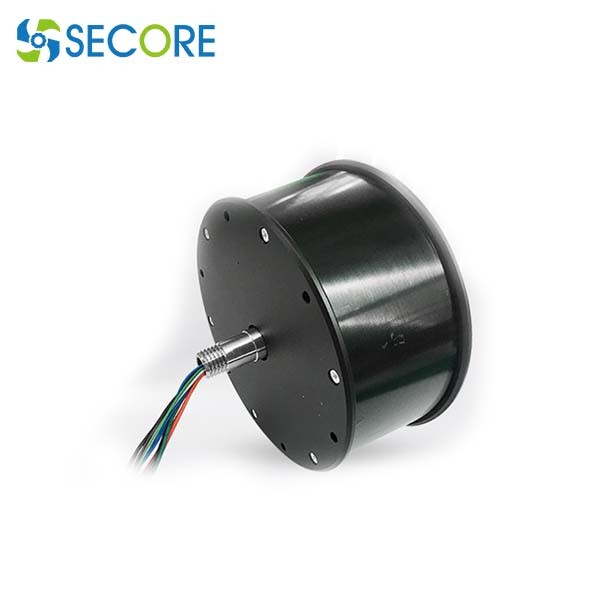

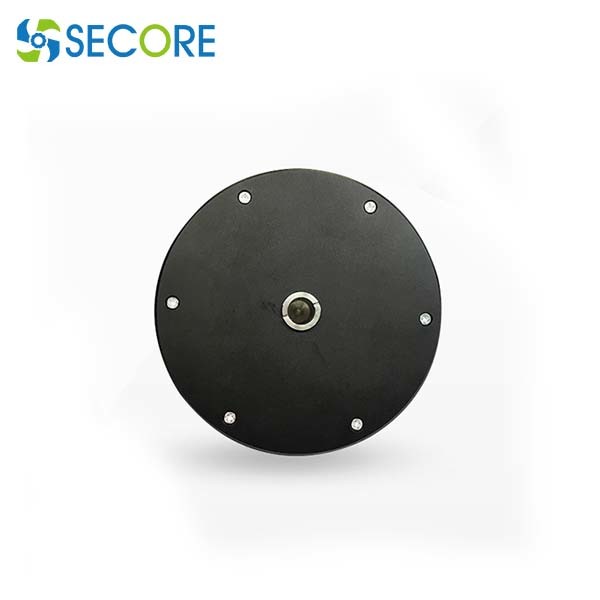

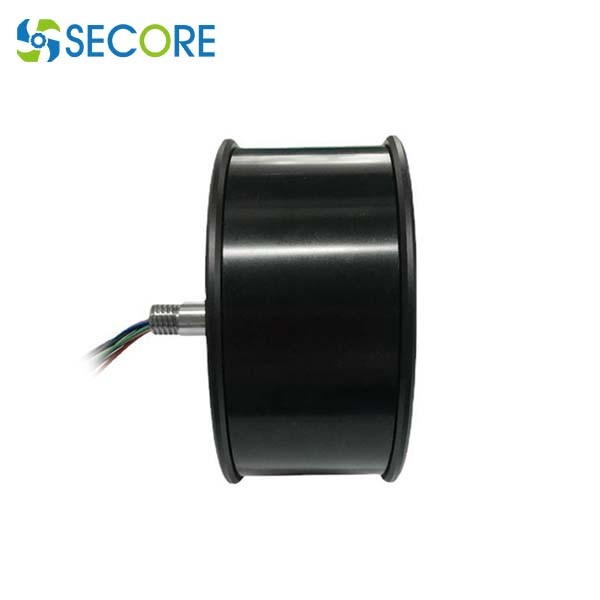

Round Outer Rotor BLDC Motor D13cm Brushless 16.8V For Electric Scooter

Name: Round Outer Rotor BLDC Motor D13cm Brushless 16.8V For Electric Scooter
Brand: SECORE
SKU: BLS-129062O
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (159 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-129062O

Detail Information
No-load Speed:	600RPM	Rated Speed:	300rpm
Rated Voltage:	16.8V Or Per Request	Rated Current:	12A
Rated Torque:	3.35N.m / 34171g.cm	Motor Dimension:	129*62mm
Product Name:	Electric Scooter Bldc Motor	Typical Usage:	Electric Scooter ,robot
High Light:	Round Outer Rotor BLDC Motor , Scooter Outer Rotor BLDC Motor , 16.8V BLDC Brushless Motor

Product Description

3N.M Round D13cm Scooter Motor Outer Rotor Brushless Motor For Electric Scooter

Specification for 129062 BLDC Motor:

• Model #: BLS-129062O
• Voltage: 16.8V or as per request

• Speed: 300-600 RPM

• Low Noise, long life, high durability

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE N.m	CURRENT A	TORQUE N.m	CURRENT A
BLS-129062O	16.8	600	0.5	300	3.35	12	6.69	23.5

Dimension:

Round Outer Rotor BLDC Motor D13cm Brushless 16.8V For Electric Scooter 0

Performance curve:

Round Outer Rotor BLDC Motor D13cm Brushless 16.8V For Electric Scooter 1

Remark

1. The performance in the performance table is typical performance, and our company can customize the performance according to the different needs of each customer.

2. Our company has a professional R&D team, which can help customers to develop and design new projects.
