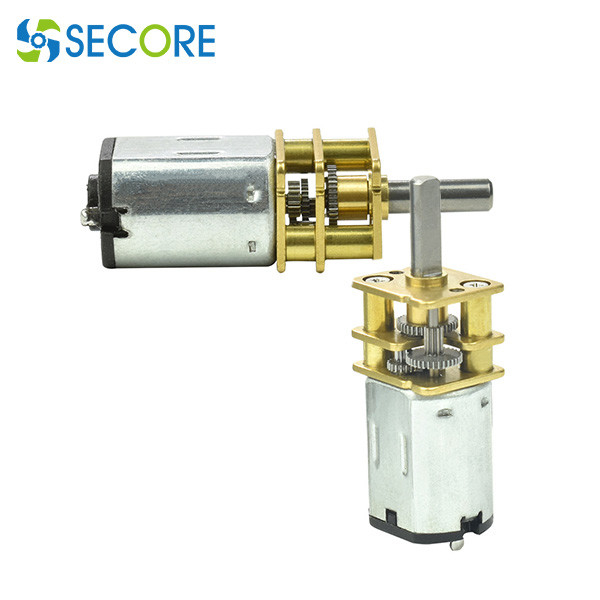

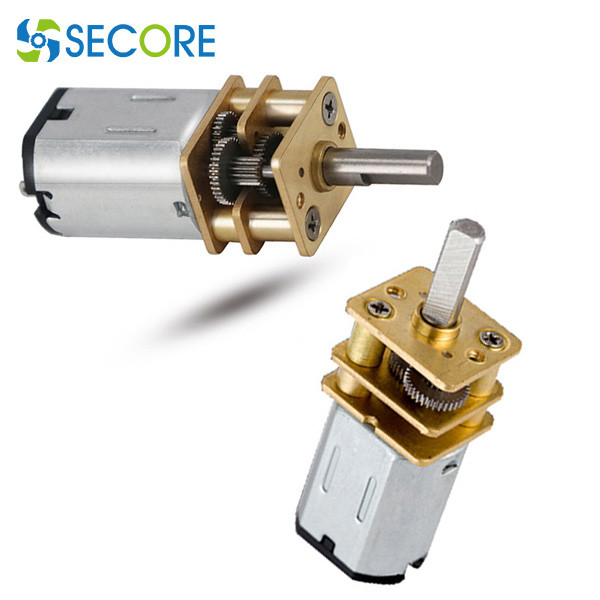

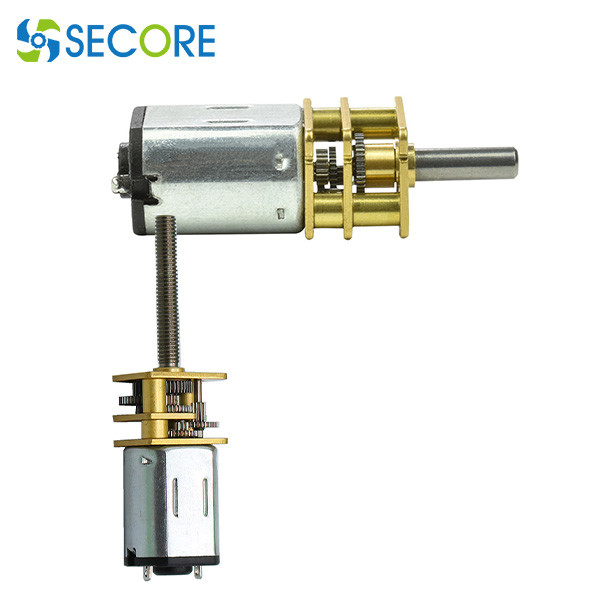

100rpm 75mA Micro Gear Motor 3v 6v 12v 15mm Length ISO For Smart Toy

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong	Brand Name:	SECORE
Certification:	ISO9001	Model Number:	SC12-N20

Detail Information
No-load Speed:	210rpm	Loaded Speed:	100rpm
Rated Voltage:	12V	No-load Current:	75mA
Rated Torque:	3.4kg.cm	Loaded Current:	0.3A
Stall Torque:	6.5kg.cm	Stall Current:	0.9A
Type:	Mini Gear Motor, 3V Dc Reducer Motor	Typical Application:	Smart Car Electronic Lock, Smart Toy Motor
High Light:	100rpm Micro Gear Motor , 75mA Micro Gear Motor , ISO Bldc Planetary Gear Motor

Product Description

Micro 15mm Lenght Low Speed Gear Motor 3v 6v12v For Smart Toy

Main features:

Motor type: mini DC gear motor
Diameter: 10*12*15MM

DC3V
gear ratio	10	30	50	100	150	210	298	380
no-load Speed ( rpm )	750	250	150	75	50	35	25	19
no-load Current ( mA )	18	18	18	18	18	18	18	18
rated Speed ( rpm )	580	200	110	60	38	28	20	14
rated Torque ( g.cm )	30	90	150	300	450	630	900	1140
rated Current ( A )	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
stall Torque ( kg.cm )	0.1	0.24	0.4	0.8	1.2	1.7	2.3	2.9
stall Current ( mA )	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2

DC6V
gear ratio	10	30	50	100	150	210	298	380
no-load Speed ( rpm )	1500	500	300	150	100	75	50	40
no-load Current ( mA )	30	30	30	30	30	30	30	30
rated Speed ( rpm )	580	200	110	60	38	28	20	14
rated Torque ( kg.cm )	0.1	0.24	0.4	0.5	0.8	1.7	2.3	3
rated Current ( A )	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
stall Torque ( kg.cm )	0.2	0.48	0.8	1.6	2.4	3.4	3.4	3.4
stall Current ( mA )	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4

DC12V
gear ratio	10	30	50	100	150	210	298	380
no-load Speed ( rpm )	3000	1000	600	300	200	140	100	78
no-load Current ( mA )	75	75	75	75	75	75	75	75
rated Speed ( rpm )	2300	770	460	230	150	100	77	160
rated Torque ( kg.cm )	0.2	0.6	1	2	3	3.4	3	3
rated Current ( A )	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
stall Torque ( kg.cm )	0.2	0.48	0.8	1.6	2.4	3.4	3.4	3.4
stall Current ( mA )	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9

Gear motor dimensions:

100rpm 75mA Micro Gear Motor 3v 6v 12v 15mm Length ISO For Smart Toy 0

Explanation of motor related parameters:

1. No-load speed: the speed at which the motor is normally energized and without load. (Unit: rpm or revolution/minute or r/min)

2. No-load current: the current when the motor is normally energized without load. (Unit: mA mA)

3. Load Torque: the rated torque during the motor load test, which is only used for test reference; (unit: g-cm grams per centimeter or kg-cm kg per centimeter)

4. Load speed: the speed of the motor under load torque. (Unit: rpm or revolution/minute or r/min)

5. Load current: the current of the motor under load torque. (Unit: mA milliampere or A amp)

6. Locked-rotor torque: also called starting torque, which is the maximum torque standard that the motor can withstand. If the torque is exceeded, the motor will stop or lock

(Unit: g-cm grams per centimeter or kg-cm kilograms per centimeter)

7. Locked-rotor current: also called starting current, which is the maximum current when the motor is blocked and stopped; (unit: mA or A)
