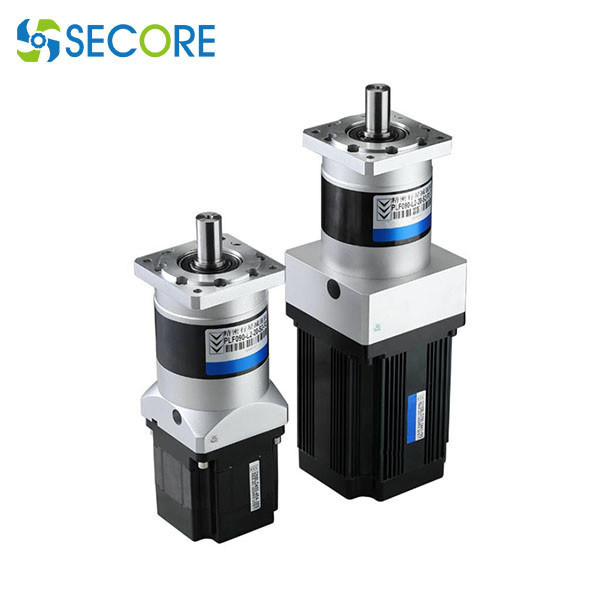

200W 1/4HP Brushless Dc Gear Motor 80mm 3000rpm 24V 0.63NM

Name: 200W 1/4HP Brushless Dc Gear Motor 80mm 3000rpm 24V 0.63NM
Brand: SECORE
SKU: BLG80-200W
Price: 1.00 USD
Availability: InStock
Rating: 5 (188 reviews)

Minimum Order Quantity :	1	Price :	Negotiated The Price
Packaging Details :	1PC per carton or as request	Delivery Time :	7-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	8000pcs per month

Place of Origin:	China,Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLG80-200W

Detail Information
MOQ:	1 PC	Rated Speed RPM:	3000 R/Min
Rated Torque:	0.63N.m	Commutation:	Brushless
Rated Power:	1/4HP, 200W	Rated Voltage:	12V, 24V, 48V
Dimension:	80mm Diameter	Construction:	Pernanent Magnet
Product Type:	1/4HP BLDC Motor	Typical Application:	Robot, Robot Toy, Robot Arm, Remote Romot
High Light:	1/4HP Brushless Dc Gear Motor , 200W Brushless Dc Gear Motor , 3000rpm BLDC Geared Motor

Product Description

200W 1/4HP Brushless Dc Gear Motor, 80mm 3000rpm 24V 0.63N.M BLDC Geared Motor with high energy efficiency

Secore High Torque Brushless DC Motor Kits ( configure 3-phase BLDC motor + matching controller + gearbox + brake optional ) , are 12V / 24V / 48V brushless DC motor coming with power 30W to 7KW, 72V / 96V can be customed, size ranging from 24mm to 180mm round and square shape, speed 1000rpm to 3000rpm, peak toruqe up to 110N.m.

Specification / Continuous rating for 80mm diameter,200W 3000rpm BLDC motor

Model number	Voltage V	Power W	Rated speed rpm	Rated current A	Rated torque N.m	No-load speed rpm	No-load current A	Peak Torque N.m
电机型号	电压 V	功率 W	额定转速 rpm	额定电流 A	额定转矩 N.m	空载转速 rpm	空载电流 A	最大转矩 N.m
BLS86-200W-1230	12	200	3000	20.82	0.635	3300	<6.21A	1.92
BLS86-200W-2430	24	200	3000	10.41	0.635	3300	<4.12A	1.92
BLS86-200W-3630	36	200	3000	6.93	0.635	3300	<2.51A	1.92
BLS86-200W-4830	48	200	3000	5.2	0.635	3300	<1.62A	1.92
BLS86-200W-31030	310	200	3000	0.8	0.635	3300	<0.41A	1.92

Allowable Torque with gearbox

Gearhead type	Gear#	Gear ration
Planetary gearhead	PLS060	1 level: 4, 5, 7, 10 2 level: 16, 20, 25, 28 3 level: 80, 100, 125, 140, 175, 200, 250

Gear ratio	4	5	7	10	16	20	25	28	35	40	50	70	80	100	125	140	175	200	250
Rated speed ( rpm )	751	600	429	300	188	150	120	107	86	75	60	43	38	30	24	21	17	15	12
Rated output torque ( N.m )	2.4	3.1	4.3	6.1	9.6	12.1	15.1	16.8	21	24	29.9	21.5	37.5	37.5	41.1	37.5	41.1	37.5	41.1
Peak output torque ( N.m )	7.3	9.2	12.8	17.1	28.7	35.9	44.9	50.4	62.9	60.1	66.1	43.1	75.1	75.1	82.1	75.1	82.1	75.1	82.1
Moment of Nertia (kgcm2)	0.094	0.092	0.091	0.091	0.094	0.092	0.092	0.091	0.091	0.091	0.091	0.091	0.092	0.092	0.092	0.091	0.091	0.091	0.091

Brushless dc motor with gear reducer, controller
