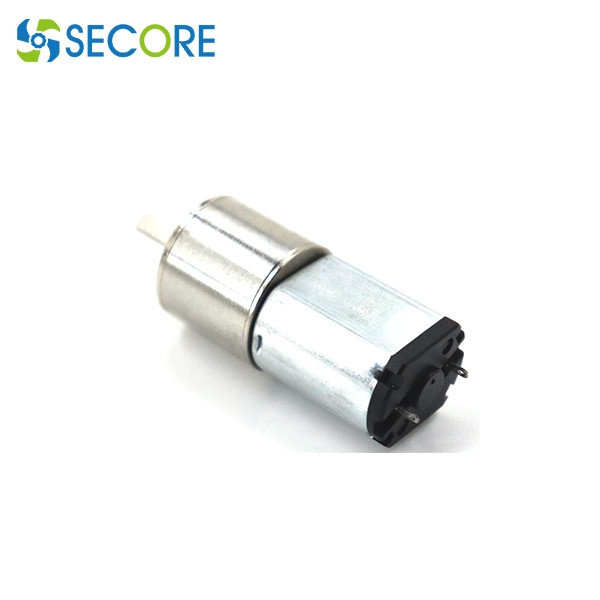

Spur Gearbox 55rpm Gear Reduction Motor 16mm Dia For Electric Toys

Name: Spur Gearbox 55rpm Gear Reduction Motor 16mm Dia For Electric Toys
Brand: SECORE
SKU: DC1630-GB
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (144 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	DC1630-GB

Detail Information
Rated Speed:	55rpm	Continuous Current:	0.03A
Commutation:	Brush	Voltage:	1.5V~12V
Rated Torque:	200g.cm	Type:	Gear Motor, Brush Dc Gear Motor
Dimension:	16mm Diameter, 12mm+ 18.7mm Length	Typical Application:	Electric Toy, Automatic Drying Rack
High Light:	Spur Gearbox Gear Reduction Motor , 55rpm Gear Reduction Motor , 16mm Dia Dc Gear Motor

Product Description

16mm miniature Gear Motor, Micro planetary Dc Gear Motor For Electric Toys

Main features:

Motor type: Brush commutated DC gear motor
Gearbox type: Spur gearbox
Diameter: Gearbox: 16mm*12mm L; DC motor: 18.7mm L

Volt	5V
No-Load Speed	87rpm
Rated Speed	56rpm
Rated Torque	300g.cm
Application	currency detectors, smart bathrooms, smart toilets, smart homes, electric window openers, hollow blinds, automatic drying racks

Gear motor dimensions:

Spur Gearbox 55rpm Gear Reduction Motor 16mm Dia For Electric Toys 0

Motor Technical parameters:

1. Rated Voltage: DC3V to12V
2. Speed No load: 17 to 3000RPM to be customized
3. Diameter 16mm, length 12mm gearhead+18.7mm motor
4. Weight: approx105g
5. Application: AI Robot, Door lock, Home Appliance, Remote control toy, Medical equipment, automobile systems, communication equipment, digital cameras etc.

Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.

Motor solution in Areas of expertise:

telescopic rod motor	AI Motor	Robotic arm motor
massage chair motor	curtain motor	medical robot motor
Embossing machine motor	slow juicer motor	roll door motor
printing machine motor	robot cleaner motor	slide door motor
oven gear motor	door motor	PTZ camera motor

About us

Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
