Brush Commutated DC Planetary Gear Motor With High Torque 30N.M For Punch Machine

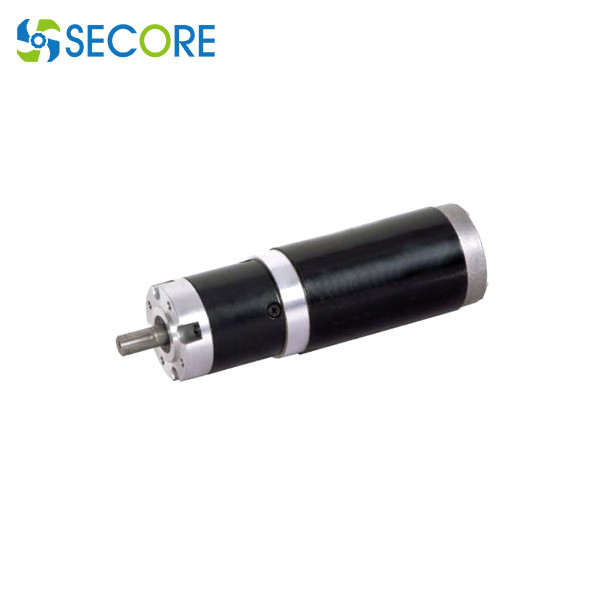

D63mm brushed DC motor equipped with a 56mm planetary gearbox, main features:
| Motor type |
Brush commutated DC motor |
| Gearbox type |
Planetary |
| Diameter |
Gearbox: 56mm; DC motor: 63mm |
| Nominal voltage |
12V/24V DC or customized |
| Gear ratio |
1:3.6 ~1:168 |
| No load current |
0.50A; 0.80A; 1.20A |
| Nominal current |
4.60A; 6.0A; 9.0A |
| No load speed |
3000rpm; 3500rpm; 4000rpm |
| Nominal speed |
2500rpm; 2800rpm; 3200rpm |
| Permissible load range |
2.0N.m ~ 30.0N.m for S1 duty cycle |
| Nominal power |
65W; 95W; 150W |
| IP rating |
up to IP68 |
Dimension:
Character Figure:
Motor Technical parameters:
| Model |
Rated voltage VDC |
No-load speed r/min |
No-load current mA |
Rated speed r/min |
Rated torque mN.m |
Output power W |
Rated current A |
Stall torque mN.m |
Stall current A |
| DC63125-2430 |
24 |
3000 |
0.5 |
2500 |
265 |
65 |
4.6 |
950 |
15.2 |
| DC63125-2435 |
24 |
3500 |
0.8 |
2800 |
320 |
95 |
6 |
1100 |
19.3 |
| DC63125-2440 |
24 |
4000 |
1.2 |
3200 |
450 |
150 |
9 |
1200 |
22.6 |
Gear motor technical parameters:
| Reduction ratio |
3.6 |
4.25 |
7.5 |
13 |
15 |
18 |
27 |
32 |
47 |
55 |
65 |
76 |
115 |
135 |
168 |
| Number of gear trains |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
| Length mm |
53 |
53 |
53 |
61 |
61 |
61 |
61 |
61 |
72 |
72 |
72 |
72 |
72 |
72 |
84 |
| No-load speed rpm |
833 |
706 |
400 |
230 |
200 |
167 |
111 |
94 |
64 |
54 |
46 |
39 |
26 |
22 |
18 |
| Rated speed rpm |
694 |
588 |
333 |
192 |
167 |
139 |
92 |
78 |
53 |
45 |
38 |
33 |
21 |
18 |
15 |
| Rated torque N.m |
0.85 |
1 |
1.7 |
2.7 |
3.2 |
3.8 |
5.7 |
6.8 |
9 |
10 |
12.5 |
14.7 |
22 |
26 |
30 |
| Max permissible load in a short time N.m |
6 |
6 |
6 |
25 |
25 |
25 |
25 |
25 |
50 |
50 |
50 |
50 |
50 |
50 |
90 |
Dimension:
Motor diameter: 63mm ( customizable )
shaft length: 28 mm ( customizable )
shaft diameter: 12mm ( customizable )
Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.
