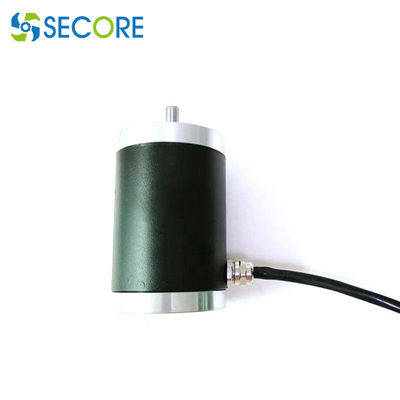

24V IP67 Waterproof Brush Motor 63mm OD For 1m Submerged Aquaculture

Name: 24V IP67 Waterproof Brush Motor 63mm OD For 1m Submerged Aquaculture
Brand: SECORE
SKU: SC63120
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (181 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	9-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	RoHS	Model Number:	SC63120

Detail Information
Product Name:	Waterproof DC Motor	Nominal Voltage:	24V
No Load Speed:	4000rpm ±10%	Rated Speed:	3200rpm ±10%
Rated Torque:	2kg.cm ( 0.2N.m, 1.77lb.in )	Output Power:	80W
Motor Size:	OD63mm * L120mm	Application:	Aquaculture, Robotics
High Light:	IP67 Waterproof Brush Motor , Aquaculture Waterproof Brush Motor , 1m Submerged Waterproof DC motor

Product Description

24V IP67 Waterproof Brush Motor 63mm Aquaculture Motor 1M Submerged

Main specification cases:

Model Number: DC-SC63120

Voltage range: DC 18V, 24V, customized 220V, 230V
High Speed: 4000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise

Model number	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				Lifetime
	Nominal constant	SPEED	CURRENT	SPEED	CURRENT	TORQUE		Lifetime
	Volts	±10% r/min	mA	±10% r/min	mA	N.m	kg.cm	H
SC-63120	24V	4000	650	3200	2800	0.2	2.04	2000

Motor dimensions

Test report of waterproofing motor SC63120 :

24V IP67 Waterproof Brush Motor 63mm OD For 1m Submerged Aquaculture 1

What specifications are needed for the motor?

you must compute the size of the motor, how to install it (how to fix it in the system);
the power, start & rated torque and speed of the motor are required;
the industrial environment that the motor operates in must also be considered: different environment (explosion, humidity, corrosion, high and low temperatures, etc.) may have different design.

For harsh environments, like a waterproof, dustproof and shockproof enclosure needs to be reviewed, please contact us for further details.
