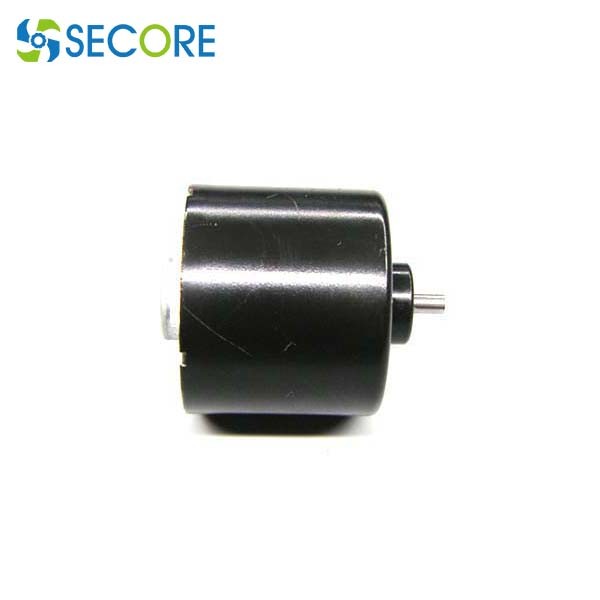

Air Dryer 36*30mm 24V Brushless DC Electric Motor With PWM Speed Adjustment

Minimum Order Quantity :	500	Price :	Negotiated The Price
Packaging Details :	50pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Shenzhen	Brand Name:	SECORE
Certification:	ISO9901	Model Number:	BLS-3630I

Detail Information
No-load Speed:	5600RPM Or Customized	Rated Voltage:	24V
Rated Speed:	4500rpm Or As Per Request	Rated Torque:	200g.cm
Dimensions:	Φ36*30L（mm）	Construction:	Permanent Magnet
Commutating:	Brushless, EC	Application:	Air Dryer, Water Pump. Sleep Machine
High Light:	24V Brushless Dc Electric Motor , Air Dryer 24v brushless dc motor , PWM brushless direct current motor

Product Description

36*30mm 24V Brushless Dc Electric Motor For Sleep Machine With PWM Speed Adjustment

Performance and features Of Miniature inner rotor bldc motor

1. Multiple voltage option: 3~48V, 310V
2. Multiple speed options: 5-100000rpm
3. Torque: 0.05kg.cm~600kg.cm
4. Shaft: D shape, dual-D, key slot, knurled, screw, hobbing, shaft hole, shaft pin
5. Commutation: brush, brushless
6. Application: Breeding Shed, Thermal insulation greenhouse, Vegetable greenhouse, Flower greenhouse, Planting greenhouses, Aquaculture greenhouse, Sleeping machine. etc
7. Equipment: gearbox, drive, brake, encoder, fan etc

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-3630I	24	5600	0.09	4500	200	0.52	1000	2.2

Advantages and shortages of BLDC Motors:
Motor dimensions

Air Dryer 36*30mm 24V Brushless DC Electric Motor With PWM Speed Adjustment 0
Performance curve

Typical Application

Air Dryer 36*30mm 24V Brushless DC Electric Motor With PWM Speed Adjustment 2

Advantages:
1.The speed of the brushless DC motor is higher than that of the brushed DC motor (the maximum speed is 100,000 rpm vs. 10,000 rpm).
2. Longer service life (over 10,000 hours)
3. More reliable and efficient.
4. With the exception of bearings, there are no wearing parts, and maintenance operations are less.
In fact, BLDC motors can run at very high RPMs, making them ideal for applications that require high RPMs, such as hair dryers, wall breakers, fans, grinders or saws. The brushless DC motor is systematically equipped with drivers, encoders and sensors, which can feedback information data such as speed and torque to achieve precise control. Therefore, they are especially suitable for precision applications that require precise control, such as medical instruments, aerospace equipment, servo robots, etc.
Shortcoming:
a) High initial cost: Each BLDC motor requires an electronically commutated drive, which is expensive.
b) Brushless DC motors often also require gear reducers in drive applications.
