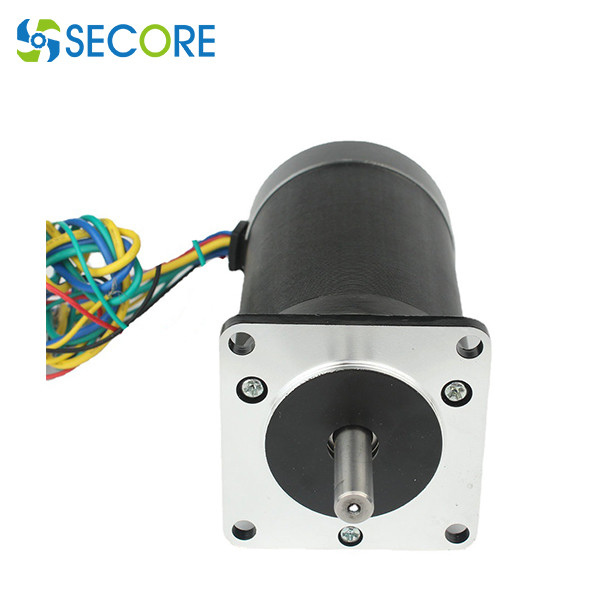

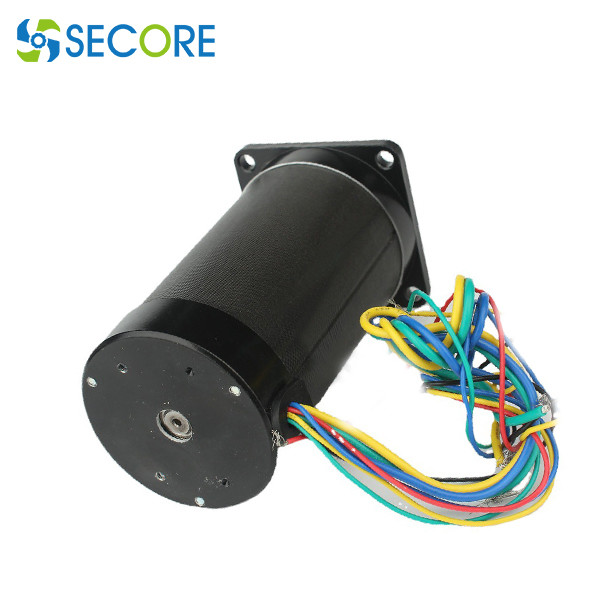

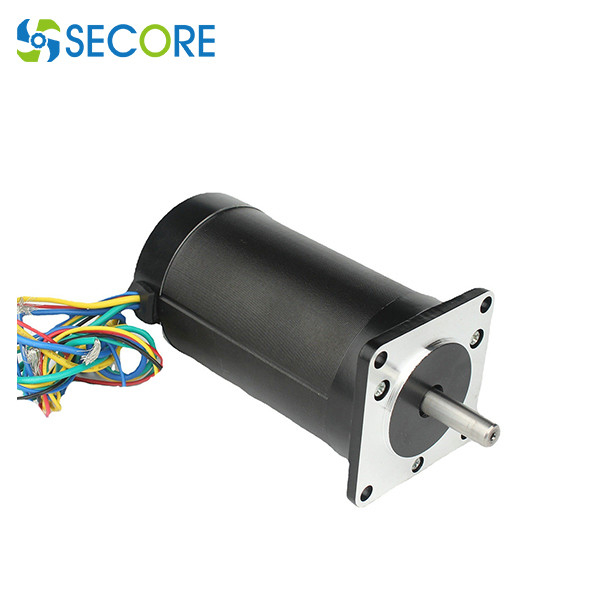

179W 57mm Brushless DC Electric Motor Bldc Motor For Solar Power System

Minimum Order Quantity :	10	Price :	Negotiated The Price
Packaging Details :	20PC per carton or as request	Delivery Time :	7-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	6000pcs per month

Place of Origin:	CHINA	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	SC-57S04

Detail Information
MOQ:	10PCS	Nominal Voltage:	24V 36V 48V
Rated Speed RPM:	4000RPM ±10%	Rated Torque:	0.434N.m
Output Power:	179W	Construction:	Pernanent Magnet
Commutation:	Electronic Commutation	Motor Dimension:	57*115mm Or Various Length Options
Product Type:	High Quality Bldc Motor, 57mm Round Brushless Motor	Typical Application:	Solar Power System, Pig Feed Machine, Mobile Electric Door
High Light:	179W Brushless DC Electric Motor , 57mm Brushless DC Electric Motor , Solar Power System Bldc Motor

Product Description

57mm Power Saving Brushless Motor High Quality 24V 36V Bldc Motor For Solar Power System

SPECS / Continuous rating for 57mm 180w brushless motor

Customized brushless motor 4000rpm 24V, 36V, 48VDC

Electronic customization: Winding custom

Mechnical customization: Various shaft types include knurled, hobbing, shaft pin, threaded shaft, shaft hole, D-Shaft, Double D shaft, key slot etc.

Item	Specification
Winding type	star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	75N@20mm form the flange
Max.axial force	15N
Insulation class	Class B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩMin, 500VDC

Model number		57BL01	57BL02	57BL03	57BL04	57BL05
Number of Poles		4
Number of Phase		3
rated voltage	VDC	36
rated power	W	47	93	132	179	22.5
Rated speed	RPM	4000	4000	4000	4000	4000
Rated torque	N.m	0.115	0.225	0.321	0.434	0.056
Peak current	A	6.82	11.52	16.52	20.54	3.51
Peak torque	N.m	0.394	0.712	1.12	1.278	0.165
Resistance	Ohms	1.52	0.71	0.453	0.352	4.12
Inductance	mH	4.21	2.161	1.42	1.11	10.12
Torque constant	Nm/A	0.064	0.064	0.064	0.064	0.054
Back EMF constant	V/RPM	6.5	6.5	6.5	6.5	5.56
Rotor inertia	g.cm²	74	118	172	229	29
motor length	mm	55	75	95	118	45
weight	kg	0.51	0.76	1.1	1.256	0.252
Sensor		Honeywell
Insulation Class		B
Degree of Protection		IP30
Storage Temperature		-25~+70*C
Operating Temperature		-15 〜+50*C
Working Humidity		＜=85% RH
Working Environment		No direct sunlight, noncorrosive gas^flammable gas, oil mist, no dust

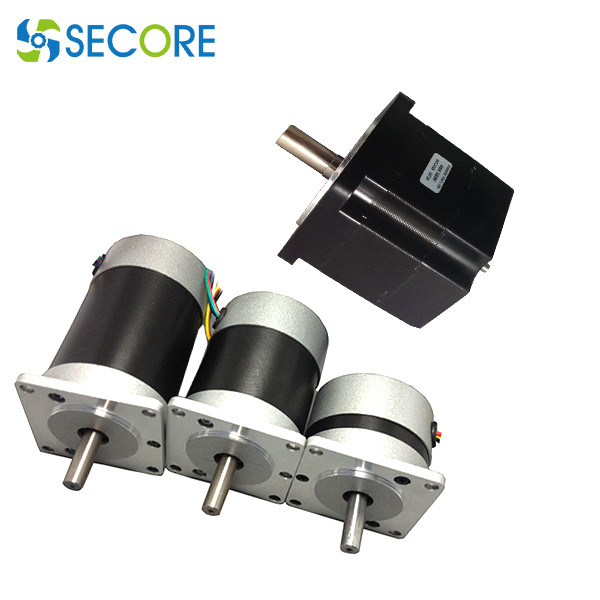

179W 57mm Brushless DC Electric Motor Bldc Motor For Solar Power System 0

The brushless DC motor is composed of a motor body and a driver, and is a typical mechatronic product. Brushless motor refers to the motor without brush and commutator (or slip ring), also known as commutator-less motor.

Parameters to be refered when Select a brushless dc motor:

Maximum torque: It can be obtained by adding the load torque, moment of inertia and friction. In addition, there are some additional factors that affect the maximum torque, such as the resistance of the air gap.

Square modulus torque: It can be roughly regarded as the continuous output torque required by the actual application, which is determined by many factors: maximum torque, load torque, moment of inertia, acceleration, deceleration, and running time.

Speed: This is the speed with application requirements. The speed demand of the motor can be determined according to the speed trapezoidal curve of the motor. Usually, a margin of 10% should be left in the calculation.
