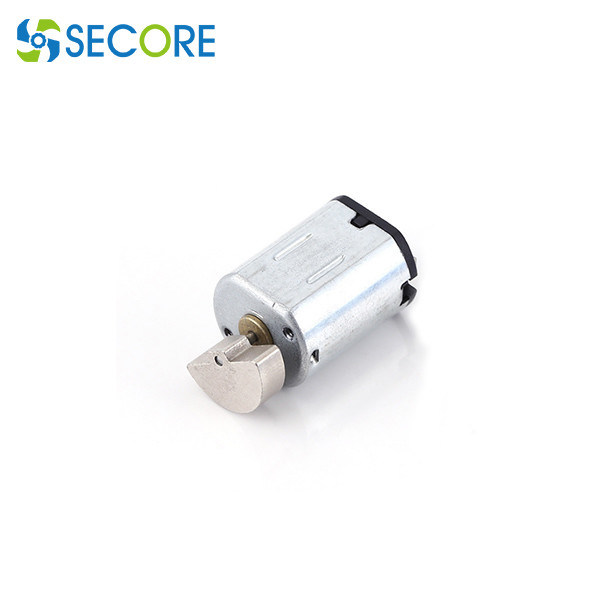

19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor
19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor 19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor 19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor 19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor
Contact Now

19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 400pcs per carton or as request Delivery Time : 8-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC1012

Detail Information
Model Number: DC1017 Operating Voltage: 2.4V 3.7V 5V
Measured Dimension: 12.5*8*10mm Rated Torque: 2.1g.cm
Speed: 19000rpm 23000rpm Or Customized Customized Shaft: ø1.0mm * Length 5mm Customizable
Commutation: Carbon Brush, Mechanical Commutating Application: Sex Toy, Camcorder, MD Recorder, Camera
High Light:

19000rpm Brushed Vibration Motor

,

3.7V Brushed Vibration Motor

,

PMDC Sex Toy Motor

Product Description

Micro 3.7V Brushed Vibration Motor, N20 PMDC Mini Sex Product Motor With Short Shaft



Main specs:

Model Number: DC1017
Voltage range: low voltage 1.5V~ 6V
Output Power: 0.05W~0.8W
High Speed: 19500RPM~23200RPM
Features: Small Size; Low Noise; High Speed; high torque



LV permanent magnet DC motor applies for sex toys, personal care, beauty equipment, health products, toys, model aircraft



Motor characteristic cases:



  Specification DC1017-01 DC1017-02 DC1017-03
Voltage Operating range (V) 1.5-3.0 3.0-5.0 4.0-6.0
Nominal (V) 2.4 4.5 5
No Load Speed (r/min ) 25600 32000 30000
Current (A) 0.106 0.065 0.07
AT Maximum Efficiency Speed (r/min) 19460 25300 23100
Current (A) 0.345 0.247 0.238
Torque (mN.m) 0.206 0.196 0.206
Torque (g.cm) 2.1 2 2.1
Output (W) 0.58 0.79 0.49
Stall Torque (mN.m) 0.863 0.941 0.882
Torque (g.cm) 8.8 9.6 9.0
Current (A) 1.1 0.93 0.8






Appearance dimensions:

19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor 0



Motor performance curve ( T-N-I curve ):



19000rpm 3.7V Brushed Vibration Motor N20 PMDC Sex Toy Motor 1



What is a brushed DC electric motor?

A brushed DC motor has permanent magnets inside its outer body with a rotating armature inside. The permanent magnets are stationary and are called the ‘stator’. The rotating armature contains an electromagnet and is called the ‘rotor’.

In a brushed DC motor, the rotor spins 180-degrees when an electric current is applied to the armature. In order to travel beyond the initial 180 degrees, the poles of the electromagnet must flip. Carbon brushes contact the stator as the rotor spins, flipping the magnetic field and enabling the rotor to spin 360-degrees.
