230V 18000rpm Brushed Permanent Magnet DC Motor For Home Appliances Hand Blender
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
| Minimum Order Quantity : | 500 | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | 500pcs per carton or as request | Delivery Time : | 10-12 working days |
| Payment Terms : | T/T, D/A | Supply Ability : | 100000pcs per month |
| Place of Origin: | China | Brand Name: | SECORE |
|---|---|---|---|
| Certification: | CE ROHS | Model Number: | DC71D |
|
Detail Information |
|||
| Speed: | 1600rpm Or Customized | Rated Voltage: | 12V 24V Or As Request |
|---|---|---|---|
| Diameter * Length: | 71*110mm | Max Efficient: | 71% |
| Rated Torque: | 200mN.m | Typical Application: | Lifting Rod, Slow Juicer, Lawn Mower |
| Highlight: | ROHS pm dc motor,200mN.m pm dc motor,12v brushed dc motor |
||
Product Description

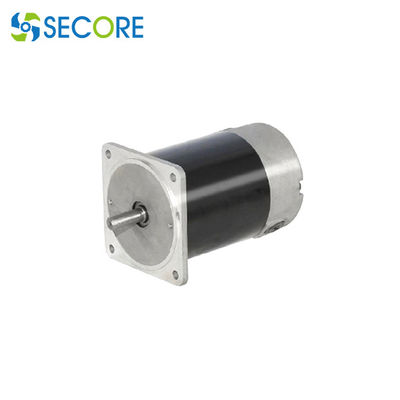

Ice Cream Machine Adopts Brushed PM DC Motor, Carbon Motor With Long Life
Main characteristics:
* Motor OD: 71mm
* Voltage: 12V DC, 24V DC, or as request
* Power: 59W
* Output Speed: 2400RPM
* Without Gearbox
* Customized shaft & front cover available upon request
| Motor type | Brush commutated permanent magnet DC motor |
| Optional gearbox type | Planetary/Spur/Worm/Right Angle |
| Diameter | 71mm |
| Length | 110mm |
| Nominal voltage | 12V/24V DC or customized |
| No load current | 0.40A; 0.50A |
| No load speed | 2000rpm; 3000rpm |
| Norminal current | 2.40A; 3.50A |
| Nominal speed | 1600rpm; 2400rpm |
| Nominal torque | 200mN.m; 240mN.m |
| Nominal power | 33W; 59W |
| IP rating | up to IP68 |
Motor size:
Technical data:
| Model | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
| DC7110-2420 | 24 | 2000 | 0.4 | 1600 | 200 | 33 | 2.4 | 1 | 9.5 |
| DC7110-2430 | 24 | 3000 | 0.5 | 2400 | 240 | 59 | 3.5 | 1.2 |
14 |
Typical Application:
| telescopic rod motor | AI Motor | Robotic arm motor |
| massage chair motor | curtain motor | medical robot motor |
| Embossing machine motor | slow juicer motor | roll door motor |
| printing machine motor | robot cleaner motor | slide door motor |
| oven gear motor | door motor | PTZ camera motor |
