Product Description

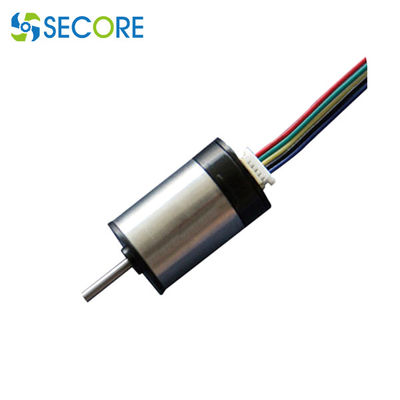

Micro 6v 9v 12v High Speed BLDC Motor With PWM, Driver, Encoder Customized
Main Characters:
1. Structure: Inner runner rotor+ball bearing
2. Size: Dia 16*L25mm
3. Shaft Dia: 2mm
4. Certification: ISO9001, ROHS
5. Rated Voltage: 6V DC 12volt
6. Endplay: 0.2mm Max
7. Rotation: CW/CCW controllable
8. No load: 9800RPM 0.055A
| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
RATED |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| r/min |
A |
r/min |
A |
g.cm |
W |
g.cm |
A |
| BLS1625I-V1 |
5V-9V |
6V |
9800 |
0.055 |
7940 |
0.228 |
11.31 |
0.908 |
58.7 |
0.965 |
| BLS1625I-V2 |
5V-12V |
9V |
8020 |
0.03 |
6256 |
0.1 |
9.1 |
0.587 |
41.6 |
0.362 |
| BLS1625I-V3 |
8V-16V |
12V |
8400 |
0.023 |
6640 |
0.086 |
9.6 |
0.655 |
45.8 |
0.321 |
TO BE TAILORED
- Select the correct voltage, and then select the rated voltage according to the customer's needs to select the brushless drive voltage parameters.
- Select the peak current of the brushless drive.
- Define the working environment (such as temperature, high humidity, etc.).
- The requirement of power supply insulation.
- The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.
If there is no suitable specifications, it can be customized according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, servo motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
Motor designer –ANSOFT Finite element analysis
Advantage of ANSOFT electromagnetic software & dynamic simulation analysis :
- Optimize motor performance and efficiency
- Optimize the electromagnetic field distribution of the motor
- Reduce motor cogging torque, vibration and noise
- Significantly improve the reliability of the motor
- Optimize the use of motor materials to reduce weight and reduce costs
- Reasonable electromagnetic design and structural design to reduce noise and vibration
Parts of Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.
• Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric scissors
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife
• Blender, sweeper, window cleaner, small household appliances etc.
