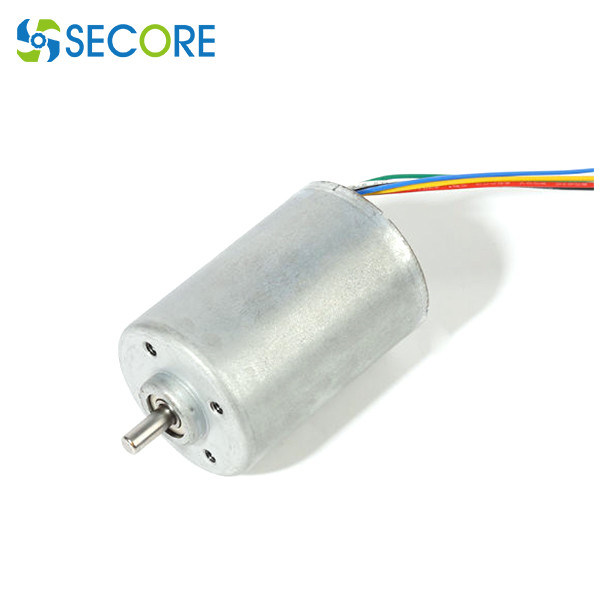

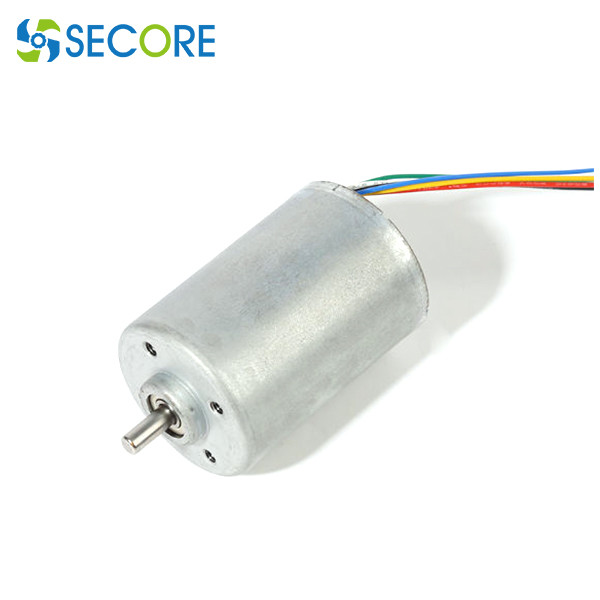

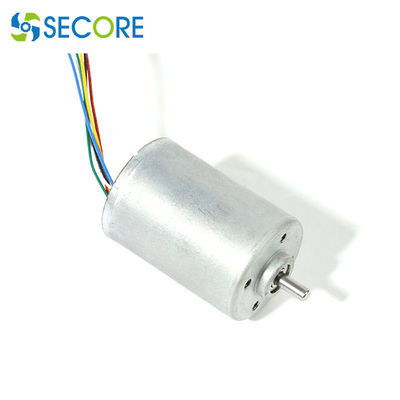

3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller
3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller 3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller 3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller 3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller 3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller
Contact Now

3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-4260I

Detail Information
Speed: 3000RPM Or Customized Rated Torque: High Torque 700g.cm Or As Request
Diameter * Length: ∮42*60（mm） Construction: Pernanent Magnet
Commutation: Brushless Efficiency: IE 1
Type: Internal Rotor BLDC Motor, Inner Rotor Brushless Electric Motor, DC Motor Typical Application: Power Tool, Electric Drill, Fanner, Electric Toys
High Light:

3000rpm Inner Rotor BLDC Motor

,

PMW Inner Rotor BLDC Motor

,

inrunner brushless motor

Product Description

Customizable 3000rpm Inner Rotor BLDC Motor With PMW Controller Integrated



Brushless DC inrunner Motors :



Dimension: φ42.0* 60mm

Built-in driver

PWM pulse wide speed range

FG speed feedback signal

Low EMC,Low noise

Long life: 20000hrs Min.



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS4260I-V1 8V~16V 12V 2038 0.15 1773 0.934 480.3 8.734 3694.3 6.184
BLS4260I-V2 8V~26V 18V 3690 0.2 3284 1.564 654.7 22.05 5951.6 12.6
BLS4260I-V3 8V~26V 24V 4280 0.2 3766 1.567 766.6 29.62 6388.1 11.59



3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller 0



3000rpm Inner Rotor BLDC Motor Inrunner Brushless Integrate PMW Controller 1



Internal Rotor BLDC Motor

The internal rotor BLDC motors from Secore are specially designed to meet rapid acceleration and high precision and low noise which applications call for.



Outerl Rotor BLDC Motor

The outer rotor BLDC motors from Secore Motor could deliver stable high torque , compact size and long service life for different applications.



2-pole & 4-pole Brushless DC Motor

2-pole & 4-pole Brushless DC motors are three phase motors where rare earth magnet are configured, which have a wide speed and torque range with integrated speed control electronics.



TO BE TAILORED

  1. Expected voltage types
  2. Configurable shaft length and second shaft end
  3. Extended temperature range
  4. Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenters
  5. Customization for high speed and or high load applications
  6. Customization for motors with increased electrical or mechanical tolerance requirements

If there is no suitable specifications, it can be customized according to actual needs.



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, Scanner
• Dialyzer, Surgical robot, Peristaltic pump, Medical Stirrer, ,Oxyen Generator

- Power tool and fitness equipment

• Electric hydraulic pliers, Electric scissors, Water Pump, Vacuum Pump
• Fascia gun, massage chair, treadmill, foot massager
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, Air fryer, electric curtain
• Blender, sweeper, window cleaner, kitchen blender, Smart Toilet


Tag:

12V 24V Inrunner Brushless Motor

High speed Inner Rotor BLDC Motor

internal rotor brushless dc motor
