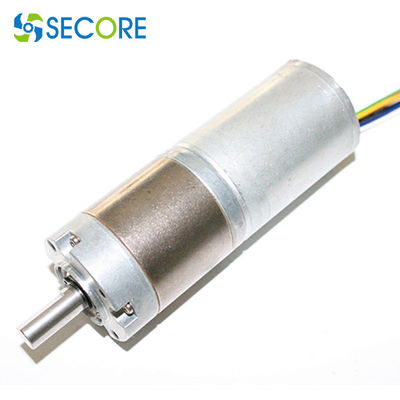

High Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpm

Contact Now

High Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpm

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	15-18 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China,Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS3640I-GB

Detail Information
Speed:	85rpm Or Customized	Rated Voltage:	12V 18V 24V
Rated Torque:	1.09-1.73（NM）or As Request	Model Number:	BLS3640I-GB
Dimension:	∮36*40（mm）	Commutation:	Brushless
Type:	Brushless Motor With Gearbox, Planetary Gear Motor,	Typical Application:	Electric Vehicle, Electric Toy, Sex Toy, Home Automation
High Light:	High Torque Brushless DC Gear Motor , ROHS Brushless DC Gear Motor , ROHS high torque dc motor 24v

Product Description

High Torque Gear BLDC Motor With 36mm Diameter 40mm Length And 10mm Shaft

Main features:

Size: φ36.0*69mm-36.0*94mm

Reducer ratio:1:3.6~1:1608

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	N.m	W	N.m	A
BLS3640I-GB-V1	8V~16V	12V	48	0.16	48	0.818	1.09	6.028	6.88	4.271
BLS3640I-GB-V2	8V~26V	18V	141	0.19	120	1.071	0.79	13.055	5.29	6.066
BLS3640I-GB-V3	8V~26V	24V	103	0.247	85	1.186	1.73	20.205	10.17	5.769

High Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpm 0

How many types of gear motor?

For low-speed, high-load applications, a motor(AC/DC/BLDC) with a specific reduction ratio gearbox is an inevitable choice.

There are four main types of gearboxes: planetary gearbox, worm gearbox, helical gearbox and spur gearbox . Each gearbox has its advantages and disadvantages. You will have to choose the one that's the most adapted to your motor . For example, if you are looking for a good level of efficiency, perhaps you should consider a planetary gearbox rather than a helical gearbox.

We could design the motor for you according to your actual needs.

Motor designer –ANSOFT Finite element analysis

High Torque Brushless DC Gear Motor 24V ROHS Certificated Speed 85rpm 1

Advantage of ANSOFT electromagnetic software :

Optimize motor performance and efficiency

Optimize the electromagnetic field distribution of the motor

Reduce motor cogging torque, vibration and noise

Significantly improve the reliability of the motor

Typical Application:

-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder

• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler

• Blender, sweeper, window cleaner, small household appliances
