12V 5G Antenna 12275RPM Micro BLDC Motor 16mm 0.547A Mini Brushless Motor
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
| Minimum Order Quantity : | 500 | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | 500pcs per carton or as request | Delivery Time : | 10-12 working days |
| Payment Terms : | T/T, D/A | Supply Ability : | 100000pcs per month |
| Place of Origin: | China,Guangdong | Brand Name: | SECORE |
|---|---|---|---|
| Certification: | CE ROHS | Model Number: | BLS4260I |
|
Detail Information |
|||
| Speed RPM: | 2000-20000 Or Customized | Rated Torque: | 600g.cm Or As Request |
|---|---|---|---|
| Type: | BLDC Motor, Brushless Electric Motor, DC Motor | Typical Application: | Office Automation, Electric Drill, Fan, Toys |
| Continuous Current: | 0.7A | Model Number: | BLS4260I |
| Dimension: | ∮42*60（mm） | Construction: | Pernanent Magnet |
| Commutation: | Brushless | Weight: | 295g |
| Origin: | China | Efficiency: | IE 1 |
| Highlight: | 42mm Brushless DC Electric Motor,20000rpm Brushless DC Electric Motor,20000rpm 42mm dc motor |
||
Product Description

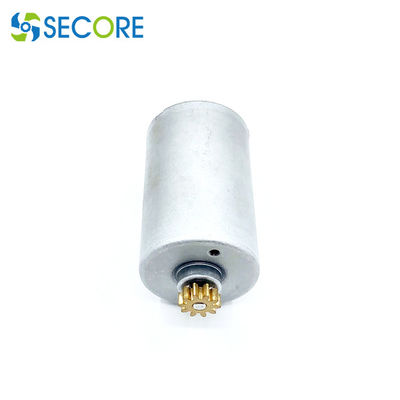

Diameter 42mm 20000rpm brushless dc motor with hall sensor for electric fan
Brushless DC inrunner Motors :
Size: φ42.0* 60mm
Built-in driver
PWM pulse wide speed range
FG speed feedback signal
Low EMC,Low noise
Long life: 20000hrs Min.
Speed 4000rpm-20000rpm,torque 6000g.cm
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
| OPERATING RANGE |
RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||
| BLS4260I-V1 | 8V~16V | 12V | 2038 | 0.15 | 1773 | 0.934 | 480.3 | 8.734 | 3694.3 | 6.184 |
| BLS4260I-V2 | 8V~26V | 18V | 3690 | 0.2 | 3284 | 1.564 | 654.7 | 22.05 | 5951.6 | 12.6 |
| BLS4260I-V3 | 8V~26V | 24V | 4280 | 0.2 | 3766 | 1.567 | 766.6 | 29.62 | 6388.1 | 11.59 |
More models for further reference:
| Model # | BLS2413O | BLS2713O | BLS2717O | BLS2719O | BLS2717O | BLS4225O | BLS4548F | BLS5550F |
| Type | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor | BLDC Motor |
| Size (mm) | Φ24.0*H13 | Φ27.0*H13 | Φ27.0*H17 | Φ27.0*H19 | Φ37.0*H17 | Φ42.0*H26 | Φ45.4*H55 | Φ55.0*52.0 |
| Voltage (V) | 5~26VDC | 5~26VDC | 5~26VDC | 5~26VDC | 8~26VDC | 8~26VDC | 8~25.2VDC | 8~25.2VDC |
| RPM | 10,000~20,000 | 6000~15,000 | 5000~30,000 | 5000~30,000 | 5000~30,000 | 5000~40,000 | 30,000~100,000 | 30,000~100,000 |
| Power (W) | 20W | 20W | 35W | 45W | 65W | 130W | 120W | 250~300W |
| Weight(g) | 50g | 55g | 60g | 65g | 70g | 125g | 100g | 150g |
| Typical application |
sweeper, vacuum cleaner |
sweeper, drive wheel chair |
small power window cleaner, vacuum cleaner |
high power sweeper, window cleaner |
high power window cleaner | Hand-held vacuum cleaner | High-speed handheld vacuum fan | High-speed handheld vacuum fan |
| Model # | BLS2418I | BLS2419I | BLS2430I | BLS2838I | BLS3640I | BLS2413O | BLS4220O |
| Type | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | outer BLDC Motor | outer BLDC Motor |
| Size (mm) | Φ24.4*H18.1 | Φ24.4*H19.0 | Φ24.4*H30.8 | Φ28.0*H37.6 | Φ36.0*H40.0 | Φ24.0*H13.0 | Φ40.5*H21.0 |
| Voltage (V) | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 3.7~26VDC | 100~240VDC |
| RPM | 3000~10,000 | 3000~12,000 | 2000~12,000 | 3000~15,000 | 3000~10,000 | 3000~25,000 | 6000~25,000 |
| Power (W) | 3~5W | 5W | 6~10W | 10~15W | 20~30W | 15~25W | 130W |
| Weight(g) | 30g | 35g | 50g | 75g | 150g | 50g | 130g |
| Typical application |
electric razor, electric hair trimmer, hair curler |
electric hair trimmer, hair curler |
electric razor, electric hair trimmer |
electric razor, electric hair trimmer |
pet electric hair trimmer | household hair dryer | hair dryer |
| Type | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | inner BLDC Motor | Brushed dc motor | Brushed dc motor | Brushed dc motor | Brushed dc motor | Brushed dc motor |
| Model # | BLS2418I; BLS2430I; |
BLS2838I; BLS2847I; |
BLS3626I; BLS3630I; BLS3640I; BLS3650I; BLS3657I; |
BLS4260I; BLS4275I; |
DC2320; DC2325; DC2327; DC2330; DC2335; |
DC2720; DC2725; DC2728; DC2733; DC2737; DC2740; |
DC3420; DC3425; DC3430; DC3435; DC3440; DC3445; |
DC4430; DC4435; DC4440; DC4450; DC4460; DC4470; |
DC5350; DC5365; DC5375; DC5380; DC53100; |
| Size (mm) | Φ24.4 | Φ28 | Φ36 | Φ42 | Φ338.3 | Φ44~46 | Φ52.0 | Φ63.0 | Φ77.0; Φ82.0 |
| Voltage (V) | 6~26 | 6~26 | 8~26 | 8~26 | 100~240 | 100~240 | 12~240 | 12~240 | 100~240 |
| RPM | 2000~12,000 | 4000~14,000 | 2000~10,000 | 2000~6000 | 5000~20,000 | 8000~16,000 | 2000~9000 | 2000~9000 | 2000~10,000 |
| Power (W) | 1~8 | 5~25 | 5~50 | 10~90 | 50~300 | 150~800 | 100~350 | 50~500 | 300~1200 |
| Typical application |
air pump, antenna base station | power tool, home and office automation | power tool, home and office automation | electric shocker, power tool | power tool, home appliances | power tool, home appliances, medical device | shredder, household appliances | shredder, household appliances, financial appliances | mixer, shredder, medical devices |
The brushless DC motor is composed of the motor body and the driver. The brushless DC motor uses Hall sensors to replace the carbon brush commutator. NdFeB is used as the permanent magnet material of the rotor. Compared with the general traditional DC motor, the performance of the brushless DC motor has great advantages, is the most ideal speed-regulating motor today.
TO BE TAILORED
♦ Customized voltage, motor performance
♦ Customized mounting, shaft shape and dimension, and lead configuration
♦ EMI/RFI suppression circuit
♦ Overload protection, thermal protection
♦ High temperature and waterproof option
♦ Integrated gearbox, controller, encoder and brake
If there is no suitable specifications, it can be customized according to actual needs.
What are the advantages of permanent magnet brushless DC motors?
Brushless motors have the advantages of brushed motors and are superior to brushed ones. Main features: low noise, long life, stable operation, no sparks, high efficiency, high dynamic response, strong reliability, etc.,
The application of permanent magnet brushless DC motors is increasing by about 15% every year. Under such circumstances, it is inevitable that brushless motors are gradually replacing other motors.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
Some of our customers:
Typical Application:
- Power tool and fitness equipment
