Product Description

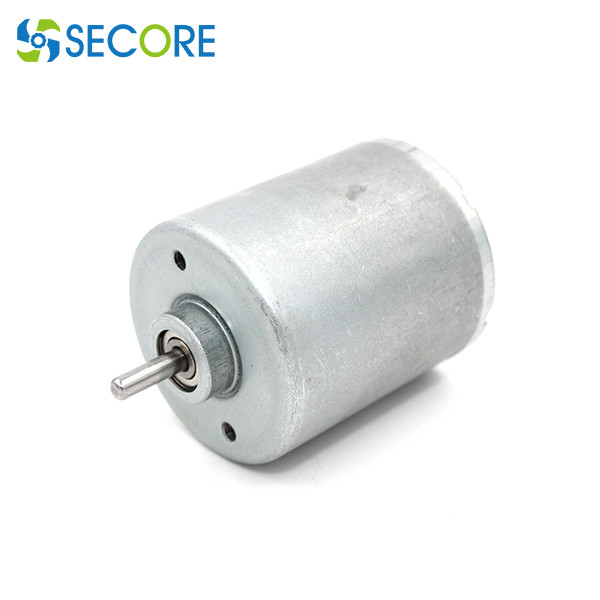

36mm 30W 8000rpm high torque inrunner brushless dc motor 12V for power tool
Specifications :
1. Structure: 6N4P Inner runner rotor + ball bearing
2. Size: Φ 36* L40mm
3. Shaft Dia: 5mm
4. Rated Voltage:18V DC
5. Endplay: 0.3mm Max
6. Lifetime: 3000H Min
7. Phase: 3
8. Rotation: CW/CCW controllable
9. No load: 8000RPM 3.5A
10. Rated: 6850RPM 288g.cm 1.2A
12. At stall: 1700g.cm 5.8A
13. Sensor, driver, tailored performance
| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
RATED |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| r/min |
A |
r/min |
A |
g.cm |
W |
g.cm |
A |
| BLS3840I-V1 |
8V~16V |
12V |
4769 |
0.16 |
4006 |
0.818 |
146.7 |
6.028 |
917 |
4.271 |
| BLS3840I-V2 |
8V~26V |
18V |
7068 |
0.19 |
6008 |
1.071 |
211.9 |
13.055 |
1412.4 |
6.066 |
| BLS3840I-V3 |
8V~26V |
24V |
8235 |
0.247 |
6835 |
1.186 |
288.2 |
20.205 |
1695.4 |
5.769 |
The brushless DC motor is composed of the motor body and the driver. The brushless DC motor uses Hall sensors to replace the carbon brush commutator. NdFeB is used as the permanent magnet material of the rotor. Compared with the general traditional DC motor, the performance of the brushless DC motor has great advantages, is the most ideal speed-regulating motor today.
More models for further reference:
| Model # |
BLS2413O |
BLS2713O |
BLS2717O |
BLS2719O |
BLS2717O |
BLS4225O |
BLS4548F |
BLS5550F |
| Type |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
| Size (mm) |
Φ24.0*H13 |
Φ27.0*H13 |
Φ27.0*H17 |
Φ27.0*H19 |
Φ37.0*H17 |
Φ42.0*H26 |
Φ45.4*H55 |
Φ55.0*52.0 |
| Voltage (V) |
5~26VDC |
5~26VDC |
5~26VDC |
5~26VDC |
8~26VDC |
8~26VDC |
8~25.2VDC |
8~25.2VDC |
| RPM |
10,000~20,000 |
6000~15,000 |
5000~30,000 |
5000~30,000 |
5000~30,000 |
5000~40,000 |
30,000~100,000 |
30,000~100,000 |
| Power (W) |
20W |
20W |
35W |
45W |
65W |
130W |
120W |
250~300W |
| Weight(g) |
50g |
55g |
60g |
65g |
70g |
125g |
100g |
150g |
Typical
application |
sweeper,
vacuum cleaner |
sweeper,
drive wheel chair |
small power window cleaner,
vacuum cleaner |
high power sweeper,
window cleaner |
high power window cleaner |
Hand-held vacuum cleaner |
High-speed handheld vacuum fan |
High-speed handheld vacuum fan |
| Model # |
BLS2418I |
BLS2419I |
BLS2430I |
BLS2838I |
BLS3640I |
BLS2413O |
BLS4220O |
| Type |
inner BLDC Motor |
inner BLDC Motor |
inner BLDC Motor |
inner BLDC Motor |
inner BLDC Motor |
outer BLDC Motor |
outer BLDC Motor |
| Size (mm) |
Φ24.4*H18.1 |
Φ24.4*H19.0 |
Φ24.4*H30.8 |
Φ28.0*H37.6 |
Φ36.0*H40.0 |
Φ24.0*H13.0 |
Φ40.5*H21.0 |
| Voltage (V) |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
100~240VDC |
| RPM |
3000~10,000 |
3000~12,000 |
2000~12,000 |
3000~15,000 |
3000~10,000 |
3000~25,000 |
6000~25,000 |
| Power (W) |
3~5W |
5W |
6~10W |
10~15W |
20~30W |
15~25W |
130W |
| Weight(g) |
30g |
35g |
50g |
75g |
150g |
50g |
130g |
Typical
application |
electric razor,
electric hair trimmer, hair curler |
electric hair trimmer, hair curler |
electric razor,
electric hair trimmer |
electric razor,
electric hair trimmer |
pet electric hair trimmer |
household hair dryer |
hair dryer |
TO BE TAILORED
♦ Customized voltage, motor performance
♦ Customized mounting, shaft dimension, and lead configuration
♦ EMI/RFI suppression circuit
♦ Overload protection, thermal protection
♦ High temperature and waterproof option
♦ Integrated gearbox, controller, encoder and brake
If there is no suitable specifications, it can be customized according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
some of Our customers
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
